Amazing solution for your industry

Discover the Power of Precision

Tailor-Made Thermal Imaging Solutions - Enhance Your Inspections with Customized Cameras Perfectly Suited for Your Unique Requirements!

WIRIS PRO
enterprise render png
WIRIS Pro PV inspection 03

Are you still considering?

It's Time to Make a Decision and Take Action Towards Your Goals!

Perfect Temperature Management

Stunning software comes for free with our cameras

Thermolab software is a powerful tool for thermal analysis and design that is available for free with every camera purchase. It is also offered in a multi-license format, making it accessible to a wide range of users.

This software is designed to work seamlessly with thermal imaging cameras, providing an easy-to-use interface for analyzing and visualizing temperature data. It offers a wide range of features, including real-time measurement, image and video recording, and customizable analysis settings.

One of the key advantages of Thermolab software is its multi-license format. This means that a single license can be used on multiple computers, allowing users to share the software across a team or organization without additional costs. This can be particularly useful for larger organizations or research teams that require multiple licenses for different users.

Free with our cameras

thermolab software

Client references

We are proud to have built strong relationships with our clients, and we look forward to continuing to serve them in the future.

I have overseen the implementation of Workswell thermal cameras for firefighting and rescue operations. These cameras have significantly improved our ability to detect and respond to fires, ultimately saving lives and property.

I am a professor of engineering at university, and I have been using Workswell thermal cameras for several years in my research on thermal management systems. These cameras have proven to be reliable, precise, and user-friendly, making them an invaluable tool for academic research.

I am the CEO of a company specializing in aerial imaging solutions. We have been using Workswell thermal cameras as an integral part of our drone systems for various applications such as infrastructure inspections, agriculture, and search & rescue operations. The cameras have consistently delivered outstanding performance and high-resolution thermal imagery.

    Which product fits you?

    Comparing the Key Features of Top Thermal Cameras: A Comprehensive Guide for Making Informed Decisions

    • Bestseller
      WIRIS Pro
    • WIRIS Pro Sc
    • WIRIS Enterprise
    Bestseller
    WIRIS Pro
    WIRIS Pro ScWIRIS Enterprise
    IR camera resolution 640 x 512 pixels
    IR Super Resolution Mode 1 266 x 1 010 pixels (improvement of native resolution up to 1.3 Mpx)
    FPA active sensor size 1.088 x 0.8705 cm
    Temperature ranges-25 °C to +150 °C (-13 °F to 302 °F) -40 °C to +550 °C (-40 °F to 1 022 °F) optional temperature range 50 °C to 1 000 °C (122 °F to 1 832 °F) optional temperature range 400 °C to 1 500 °C (752 °F to 2 732 °F)-25 °C to +150 °C (-13 °F to 302 °F) -40 °C to +550 °C (-40 °F to 1 022 °F) optional temperature range 50 °C to 1 000 °C (122 °F to 1 832 °F) optional temperature range 400 °C to 1 500 °C (752 °F to 2 732 °F)-25 °C to +150 °C (-13 °F to +302 °F) -40 °C to +550 °C (-40 °F to +1 022 °F) optional 50 °C to 1 000 °C (122 °F to 1 832 °F) optional 400 °C to 1 500 °C (752 °F to 2 732 °F)
    Temperature sensitivity 30mKOptionalOptional
    Accuracy ±2 % or ±2 °C
    Frame rate 30Hz
    Spectral range / detector (7.5 – 13.5 μm / Uncooled VOx microbolometer)
    Calibration of each lens
    Available lenses18°, 32°, 45°, 69° (exchangeable lenses, all calibrated)18°, 32°, 45°, 69° (exchangeable lenses, all calibrated)18°, 32°, 45°, 69° (exchangeable lenses, all calibrated)
    Protectiong filter for the lens against external damage during the flight
    Digital zoom1 – 12x continuous1 – 12x continuous1 – 12x continuous
    Digital visual camera 1
    Resolution1 920 x 1 080 pixels (Full HD), 1/3” sensor1 920 x 1 080 pixels (Full HD), 1/3” sensorResolution: 1 920 x 1 080 pixels (Full HD), 1/2.8” EXMOR R CMOS sensor
    Auto white balance, Wide dynamic range, Backlight compensation, Exposure and Gamma control
    Optical zoom10x optical zoom with vibration compensation10x optical zoom with vibration compensation30x optical zoom with vibration compensation and image stabilization
    View angleultra zoom 6.9° – extra wide 58.2°, focal 33.0 mm – 3.3 mmultra zoom 6.9° – extra wide 58.2°, focal 33.0 mm – 3.3 mmFeatureultra-zoom HFOV 2.3° – extra wide 63.7°, focal 129.0 mm – 4.3 mm
    Special 3D noise reduction function
    BonusIR cut filtering, DEFOG
    Digital visual camera 2
    Resolution4 656 x 3 496 pixels (16 Mpx), 1/2.8” IMX298 sensor
    Field of viewextra wide DFOV 73.2°, focal 4.35mm
    Settings: configuration and stream in advanced auxiliary menu
    Memory and data recording
    Radiometric JPEG images and Digital camera Full HD JPEG images
    Digital camera h.264 encode video HD recording
    Autofocus with Direct Focus Zoom synchronization
    Pix4D and Agisoft compatible for 3D modeling
    Desktop software ThermoLab
    Stream SDK, Data SDK, CANbus & UART SDK
    Input supply voltage9 – 36 VDC, Coaxial 2 x 6.4 mm, outer shell - GND10 – 36 VDC, Coaxial 2 x 6.4 mm, outer shell - GND9 – 36 VDC, 2-pin HARTING connector
    Power dissipation12W12W18W average (21W peak) consumption
    Weight< 430 grams (0.95 lb)< 430 grams (0.95 lb)< 680 grams (1.49 lb) including Rangefinder, without IP protection cap
    Dimensions (L x W x H)83 mm x 85 mm x 68 mm (3.26 in x 3.34 in x 2.67 inch)84 mm x 85 mm x 68 mm (3.26 in x 3.34 in x 2.67 inch)76 mm x 107 mm x 102 mm (2.99 in x 4.21 in x 4.01 in)
    Mounting2 x 1/4-20 UNC thread (1x bottom side, 1x upper side)2 x 1/4-20 UNC thread (1x bottom side, 1x upper side)2 x 1/4-20 UNC thread (1x bottom side, 1x upper side)
    Durable aluminium body for long-time measurement stability
    Buy Now

    Do you want custom solution & tailored made pricelist?

    Get a free consultation!

    Reach Out to Our Sales Manager for a Personalized Offer and Solution: Get Your FREE Custom Consultation Now!

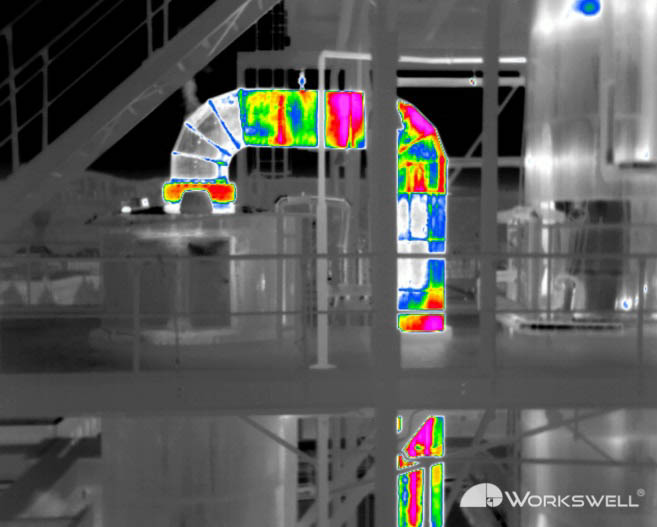

    Workswell WIRIS Pro Pipeline inspection 02
