Drone thermal cameras for UAV
products based on advanced thermal imaging sensors

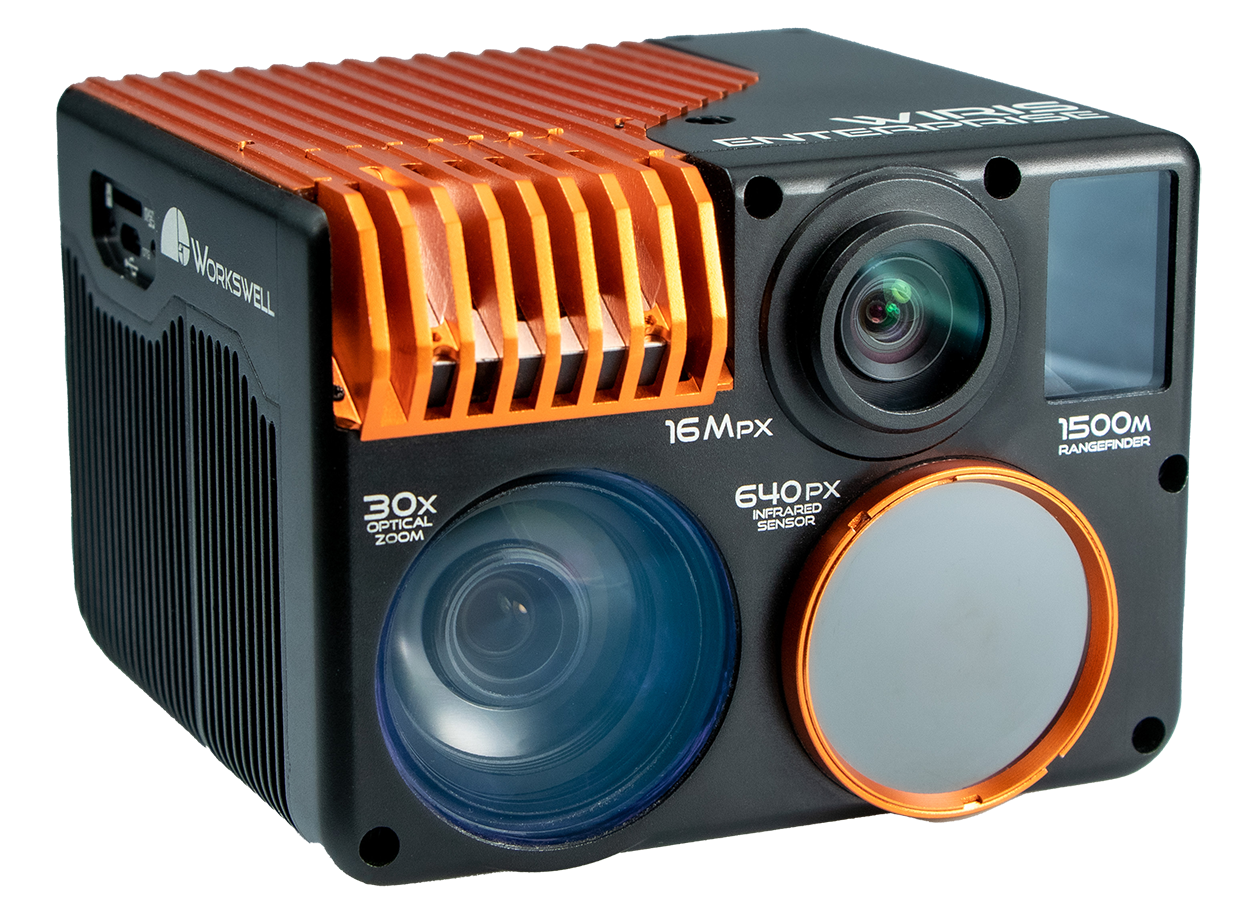

WIRIS®Enterprise
Workswell WIRIS Enterprise is a Multi-sensor Camera that has been specifically designed for use with unmanned aerial vehicles (UAV/UGV), or drones.
Multi-sensor payloads designed for the most demanding applications.
- High temperature range up to 1500°C
- Thermal camera image resolution 1266 x 1010
- Precise laboratory calibration ±2 % or ±2 °C
- 30x Optical RGB zoom
- Range finder up to 1500M detection
- High resolution 16MPX, fix super wide angle
- IP66 and rugged construction
- SSD memory on board
WIRIS®Pro edition

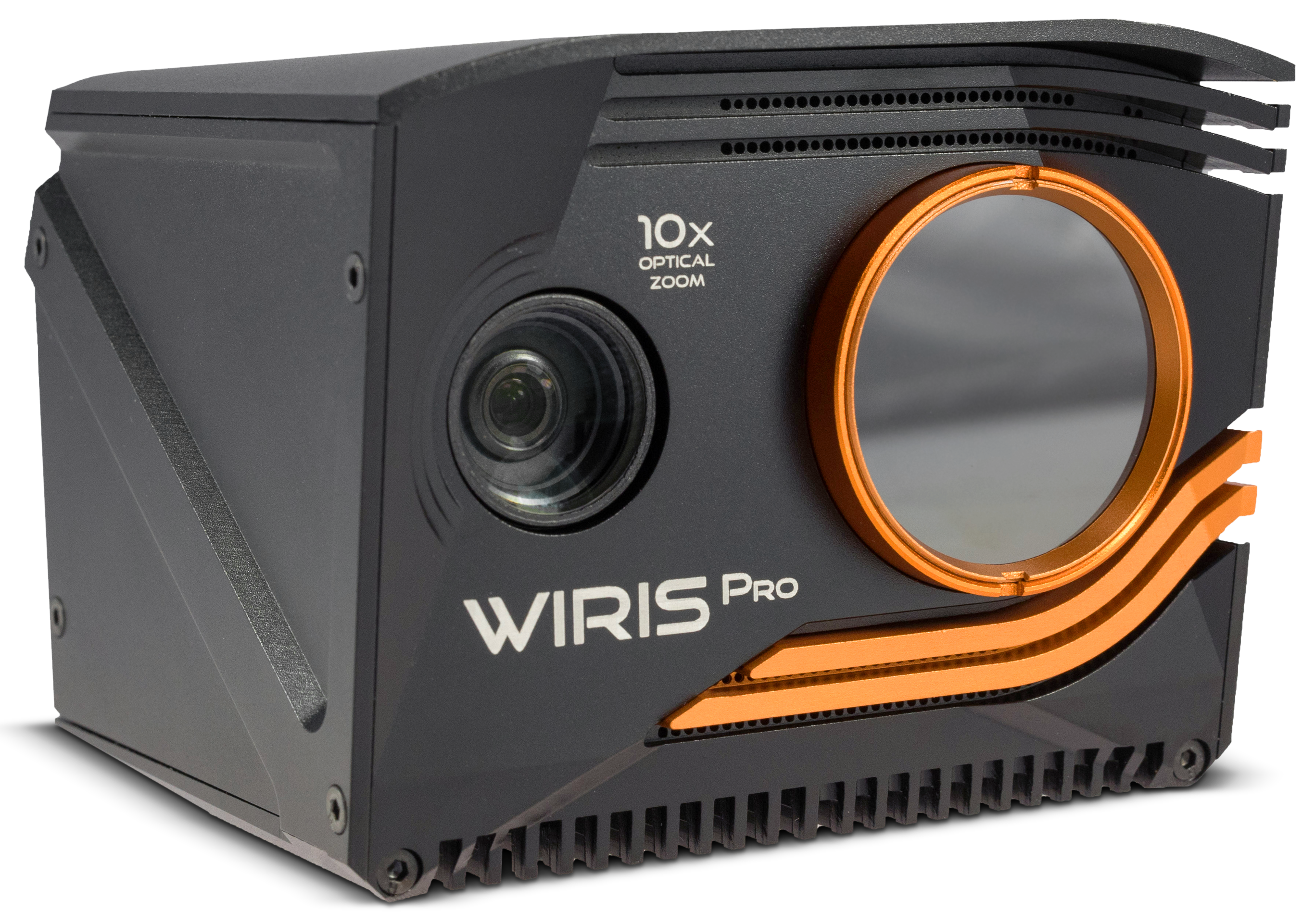

WIRIS®Pro
Workswell WIRIS® Pro has been designed first and foremost as an inspection camera with integrated optical zoom RGB camera. The WIRIS Pro thermal camera is designed with both mapping applications and inspection work in mind.
- IR Super Resolution 1266 x 1010 px
- Optical RGB camera 10x
- Sensitivity up to 30mK
- Temperature range up to 1 500°C
- Frame rate 30Hz
- Calibration +-2°C or +-2%
- Optical zoomable Picture-in-Picture mode
- SSD memory on board

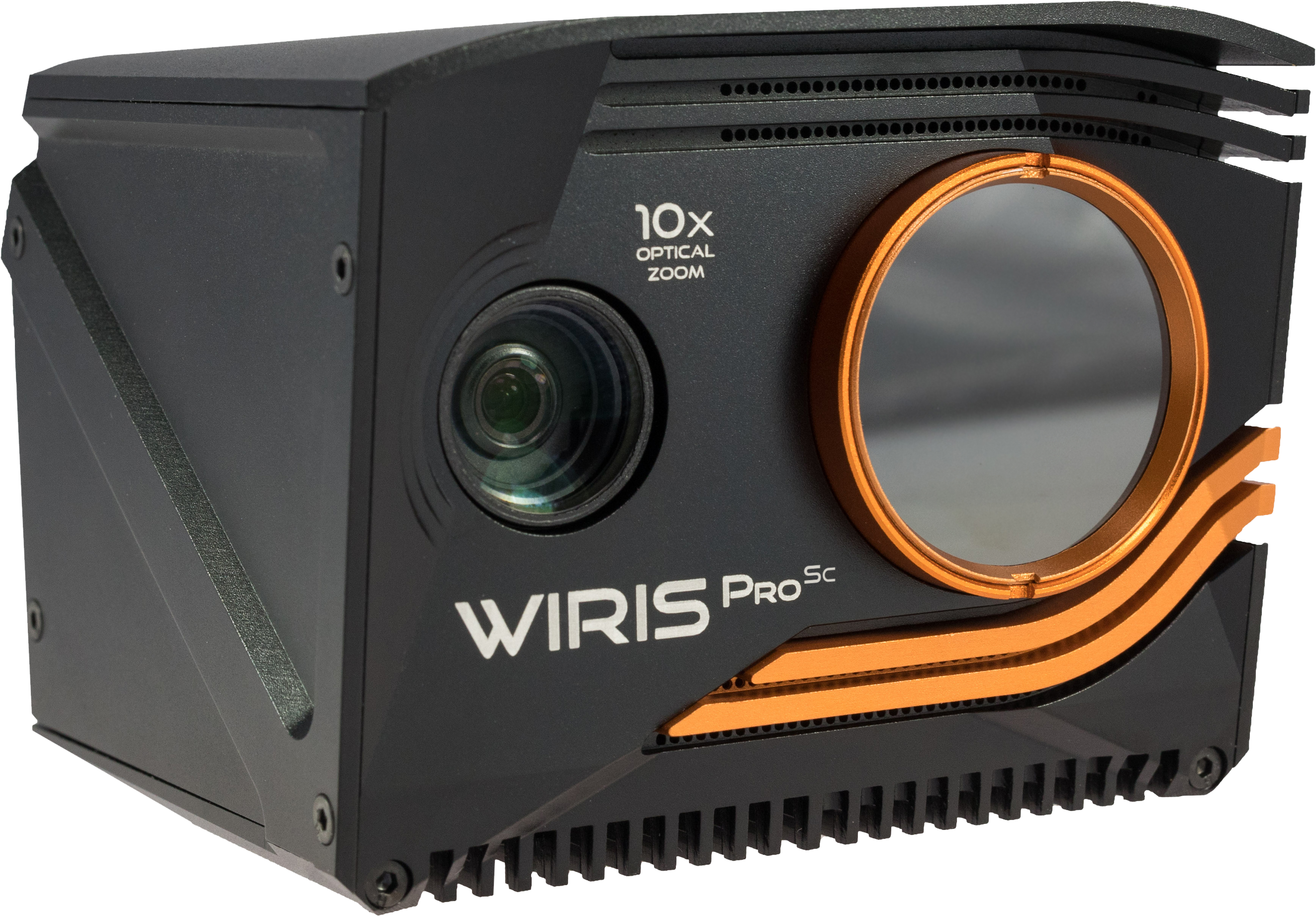

WIRIS®ProSc
Workswell WIRIS® ProSc is a state of the art thermal imaging camera used for the most challenging applications like a geological, archeological and forest research, ecological and enviromental research, structural research of buildings (dams, chimneys, bridges).
- IR Super Resolution 1266 x 1010 px
- Optical RGB camera 10x
- Sensitivity 30mK, Calibration +-2°C or +-2%
- Frame rate 30Hz,
- Optical zoomable Picture-in-Picture mode
- WIRIS Data SDK and Ethernet Stream SDK
- Multilicence SW ThermoLab
- 2x user exchangable lens
- SSD memory on board
Workswell’s WIRIS® Agro R is the first device of its kind designed to map water stress across large areas in the field of precision agriculture and at the same to measure and evaluate the temperature information.
- Calibrated temperature measurement
- Water status monitoring
- Manage irrigation management
- Phenotyping, biomass cover index evaluation
- Real-time and offline vizualization
- 2D and 3D software analysis
- SSD memory on board
gas detection infrared camera
GIS 320
GIS-320 is the gas detection infrared camera with the option to measure the temperatures up to 350°C at the same time. Infrared cameras are highly suitable for detecting specific gas leakages and the presence of gas.
- Up to 400 gases are detectable
- Calibrated temperature measurement
- High sensitivity sensor 0.015°C
- 10x optical RGB zoom integrated
- Plug&play integration for any drone
- SSD memory on board
