WIRIS mini

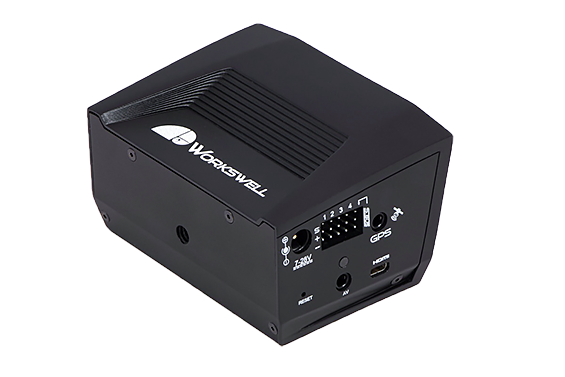

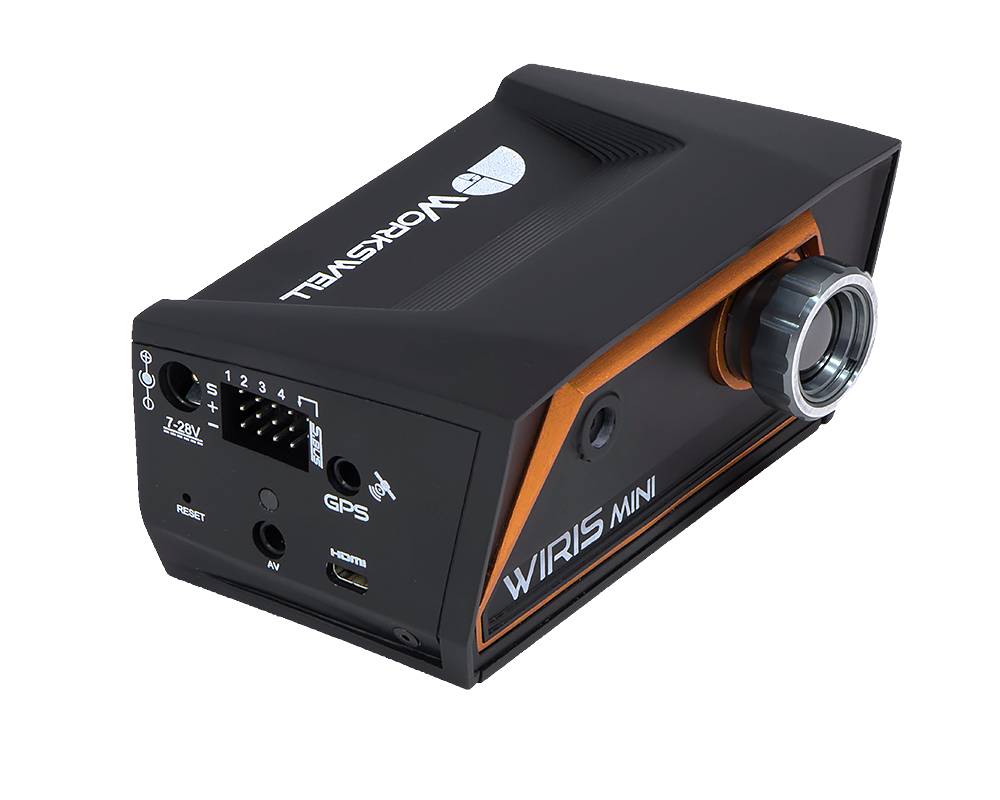

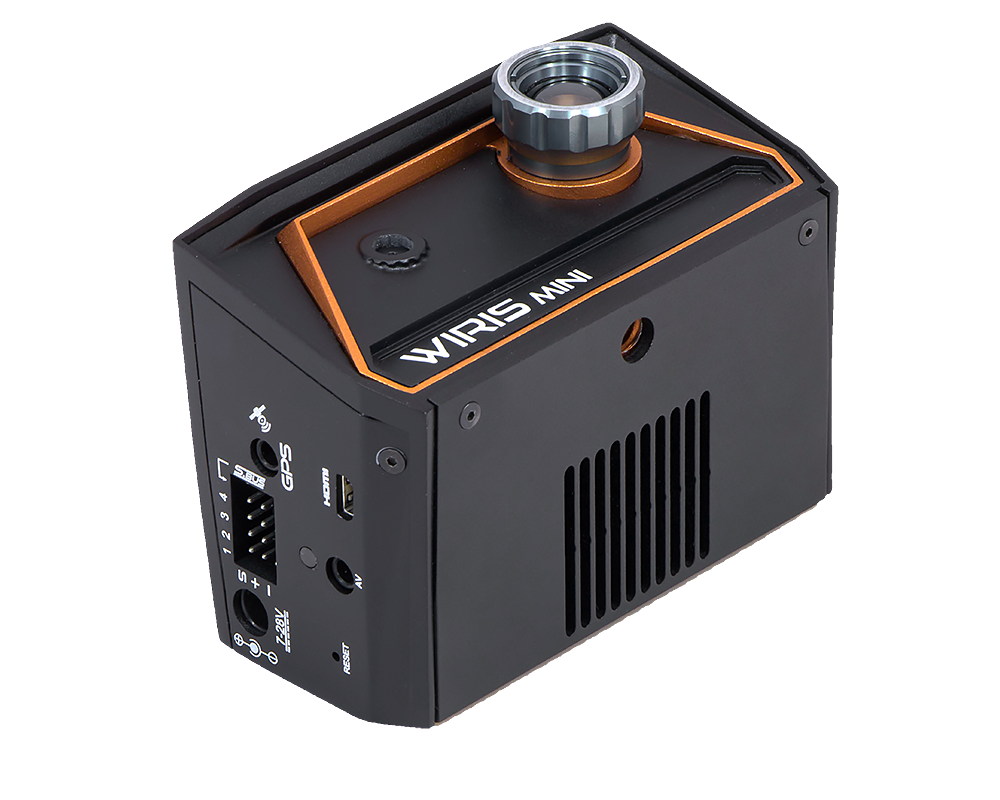

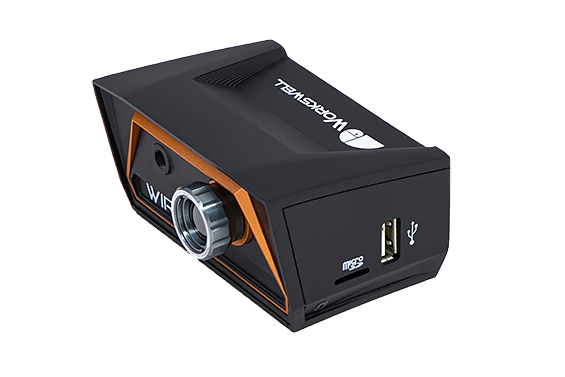

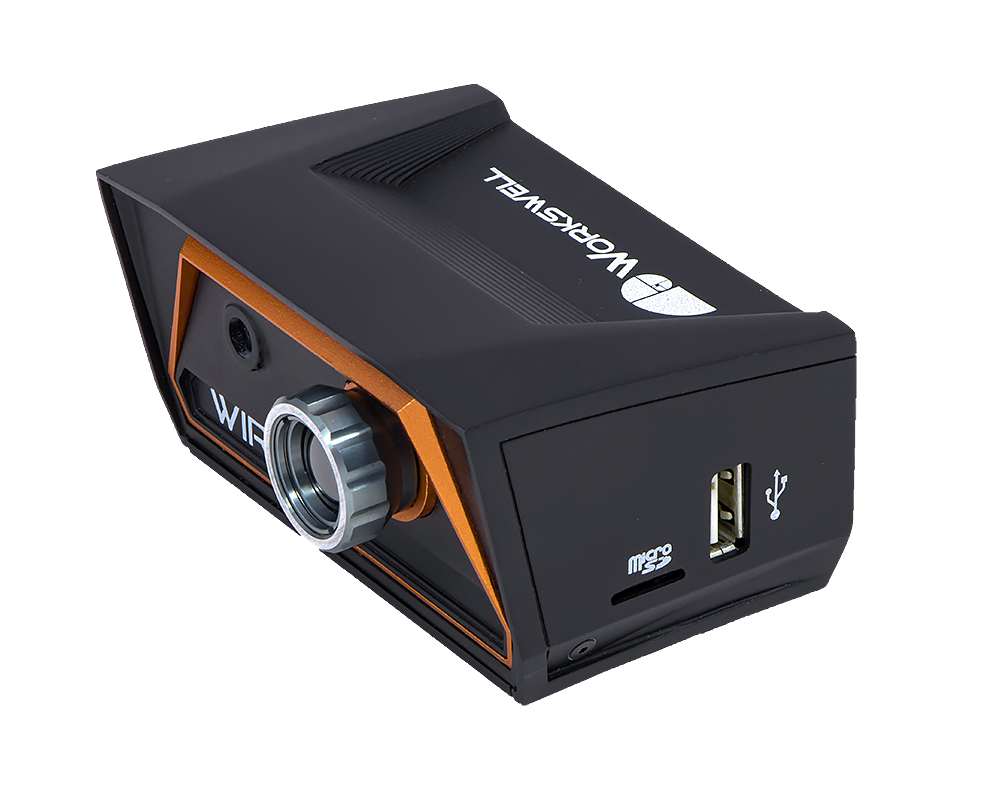

Presenting Workswell’s WIRIS thermal imaging system for unmanned aerial vehicles – that’s UAVs, or drones for short. It’s both smaller and lighter than the standard WIRIS camera, but it still packs a punch: the WIRIS mini unites a thermal camera, a digital camera, and a control unit with an optional recording unit. The WIRIS system is unique, and it enables the remote configuration of its thermal settings and parameters.
Small Dimensions

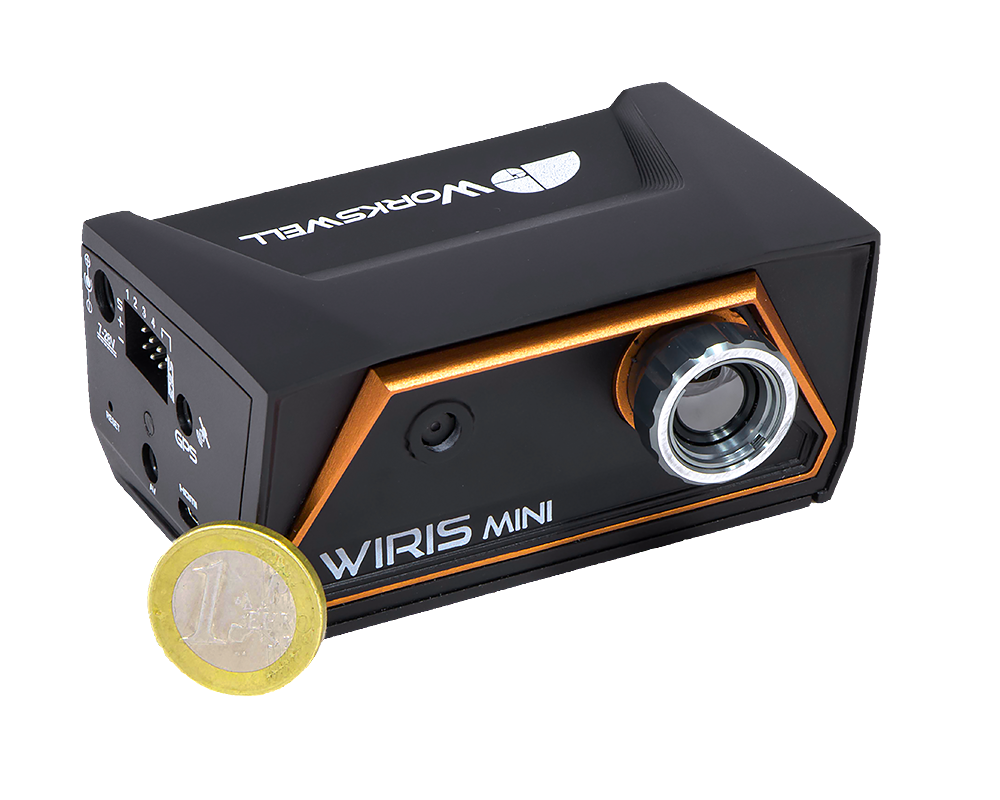

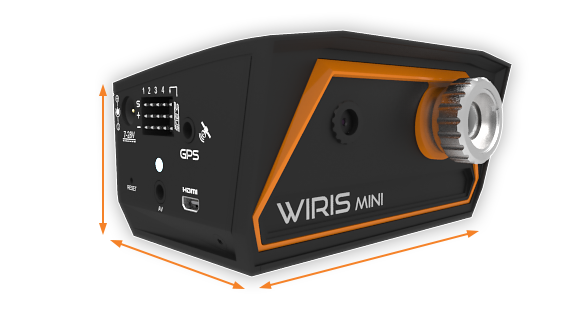

Workswell’s WIRIS mini is an exceptionally small and compact device. Its dimensions are only 85 x 65 x 45 mm.
Low Weight
The Workswell WIRIS mini weighs less than 160 g. This unusually low weight increases the drone’s fly time and battery life.
Multiplatform Connectivity
A major advantage of the Workswell WIRIS mini system is that many of its features can be controlled remotely with standard RC transmitters. It supports both PWM and S.BUS inputs.
Analog and Digital Output
The WIRIS mini has two types of video output: a digital HDMI port (1280 x 1024 px) as well as an analogue Video output port (NTSC, PAL).
Fully Radiometric Data
Final images can be stored in the following formats: radiometric JPEG, radiometric TIFF and standard JPEG, for images in the visible spectrum captured by its digital camera. If you utilize a GPS connection, the GPS coordinates are saved to each individual image.
Suitable for Smaller Drones
Thanks to its compact size and low weight, the WIRIS mini is extraordinarily efficient. This means it can also be used with a number of small, light drones that cannot carry heavier cameras.
Precise Measurement
WIRIS cameras boast exquisite precision. To be precise, they achieve values of ±3 °C. Both the Workswell WIRIS mini and the standard Workswell WIRIS are the most precise thermal cameras for drones.
Mapping Bundle
Gallery

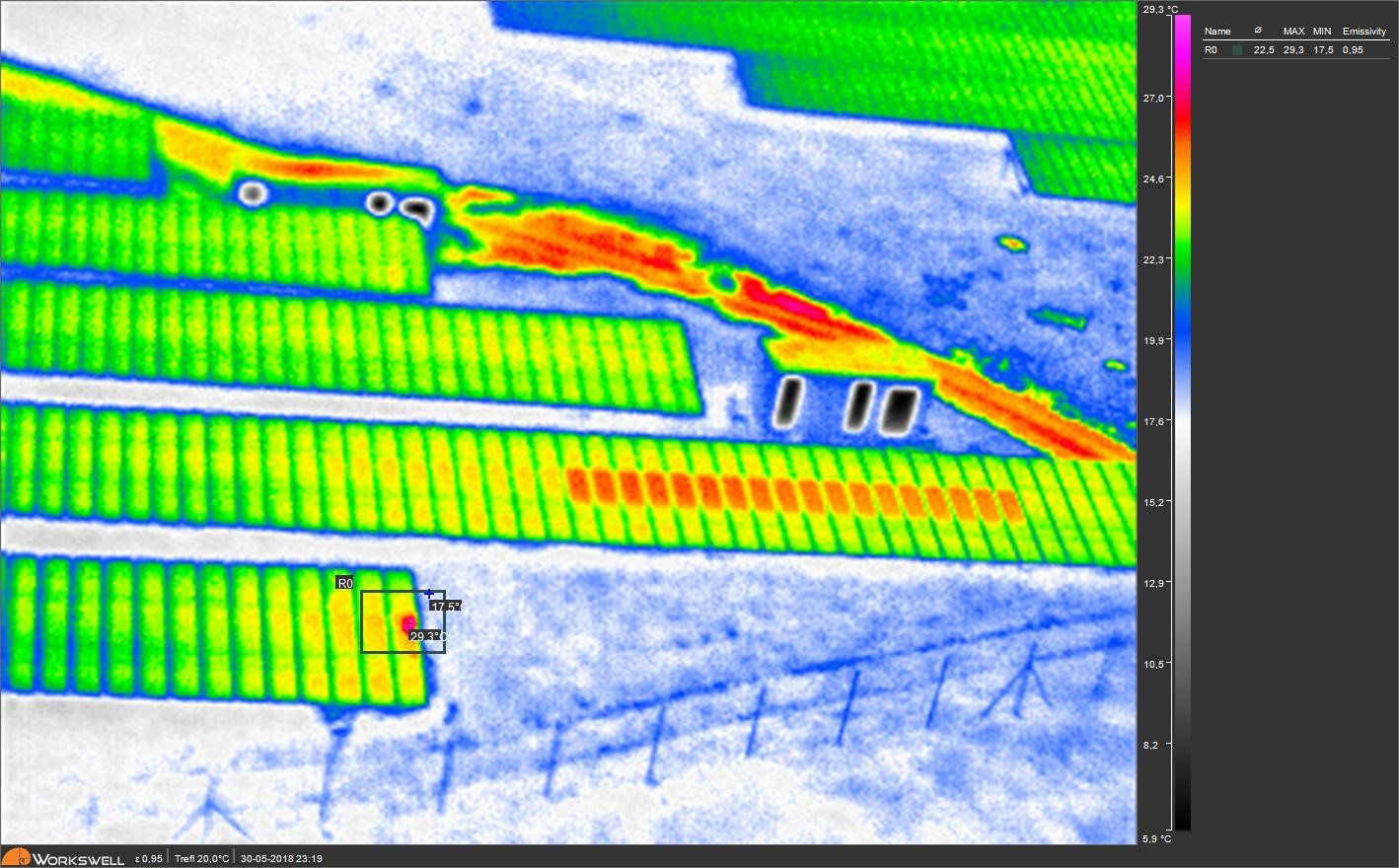

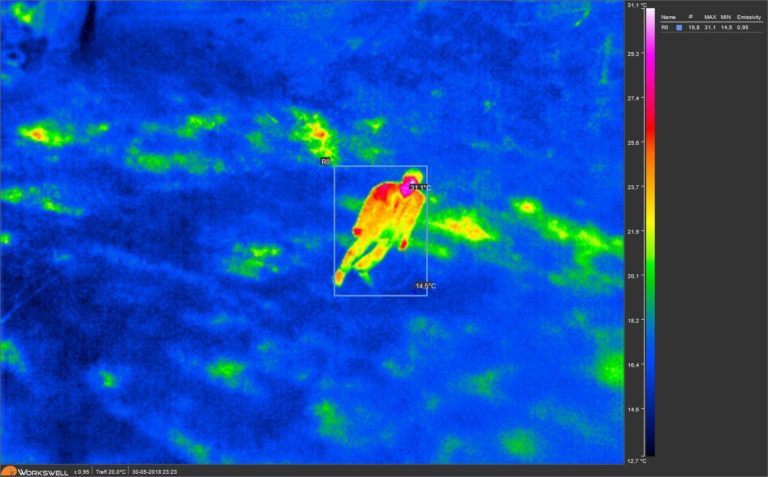

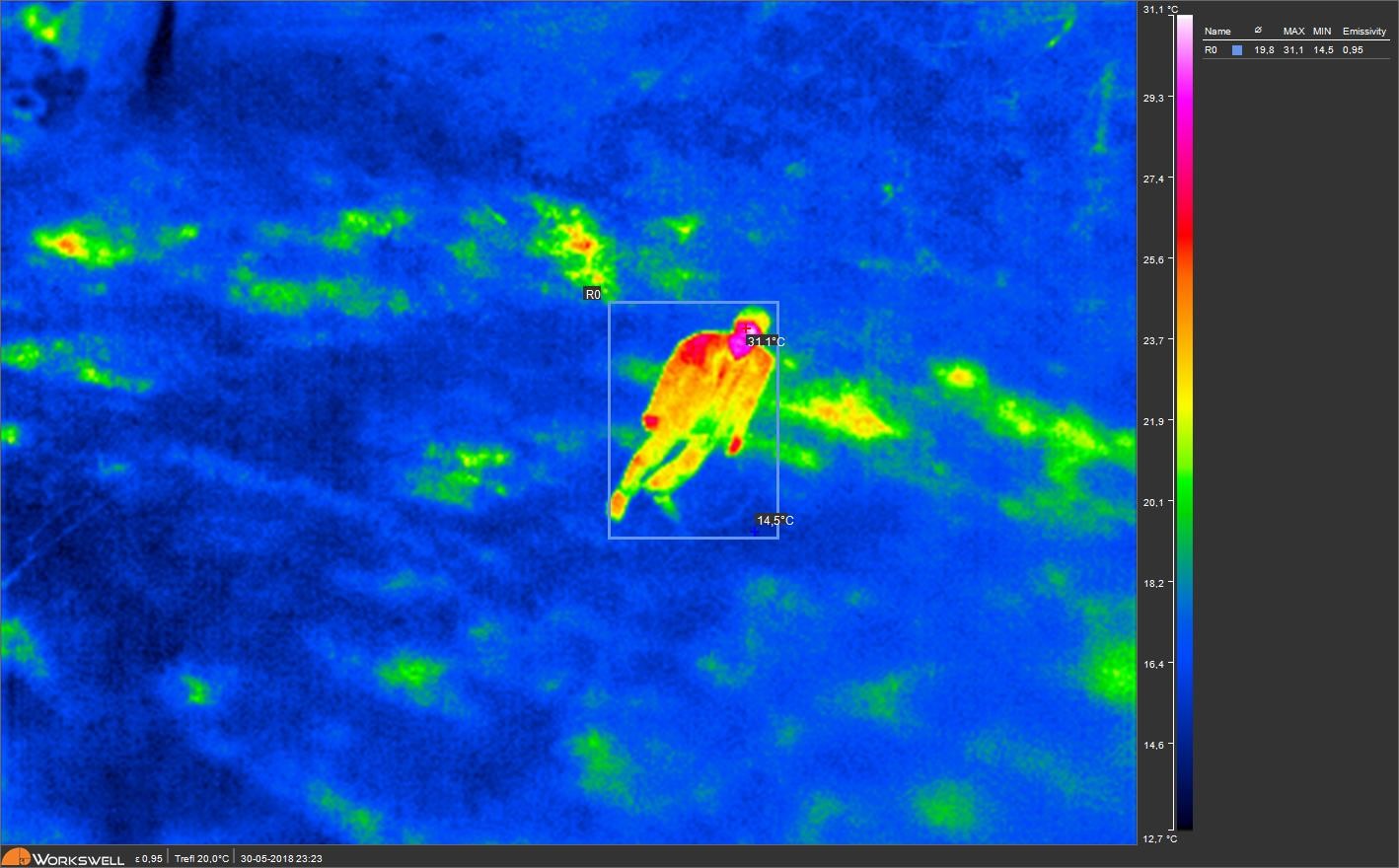

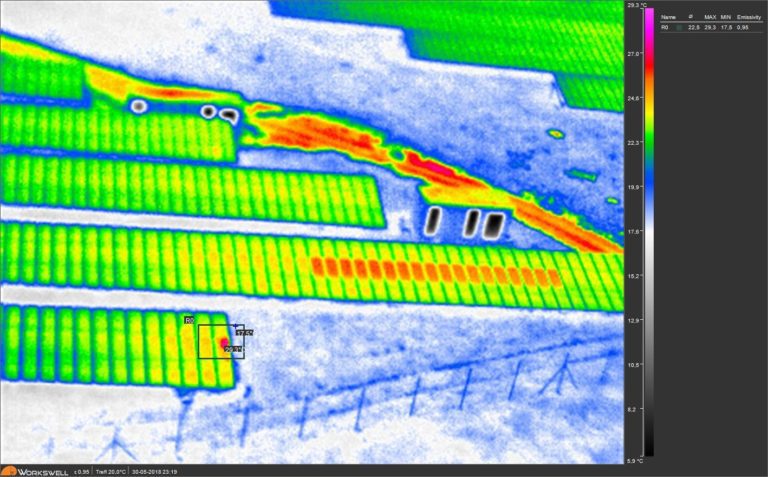

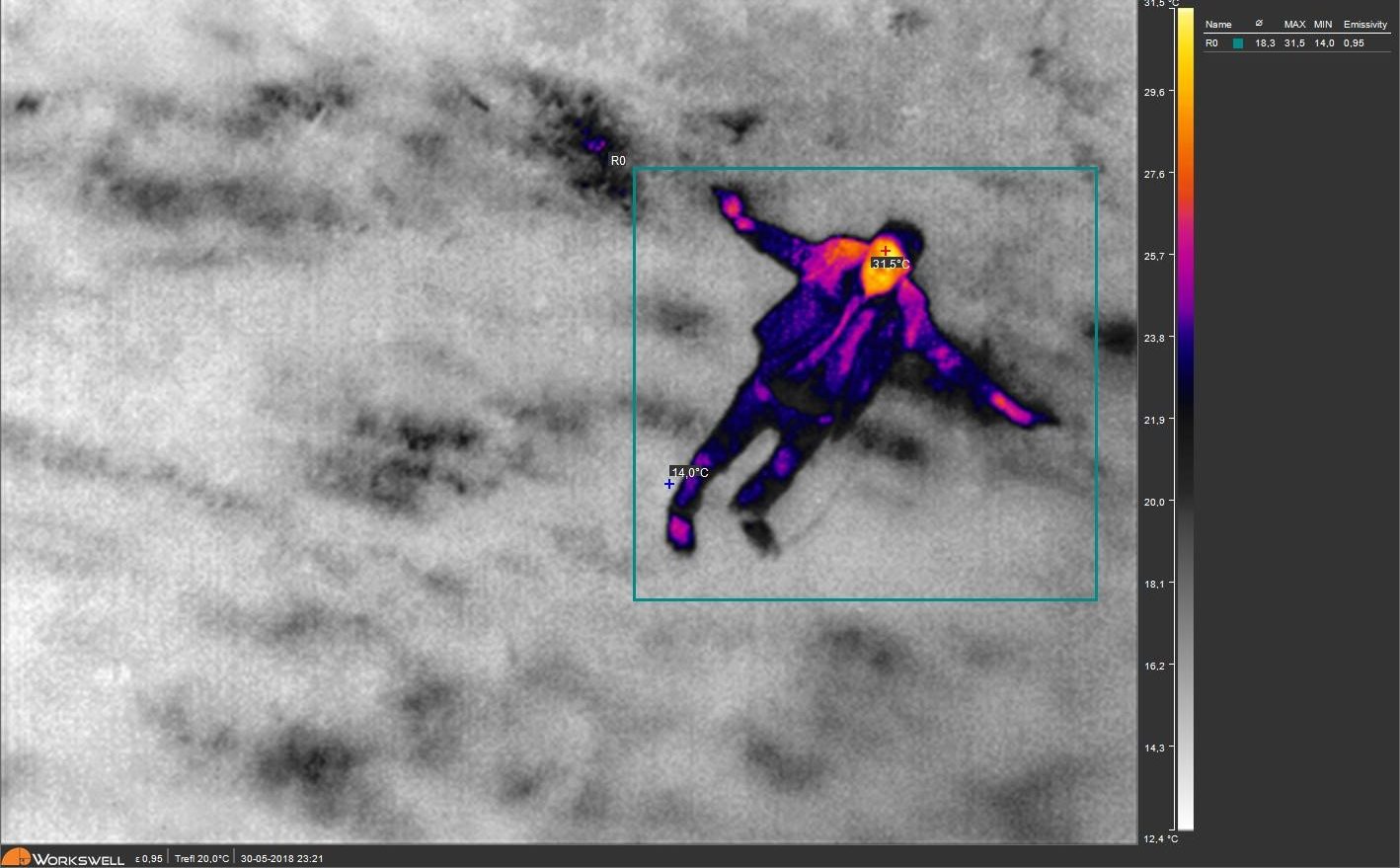

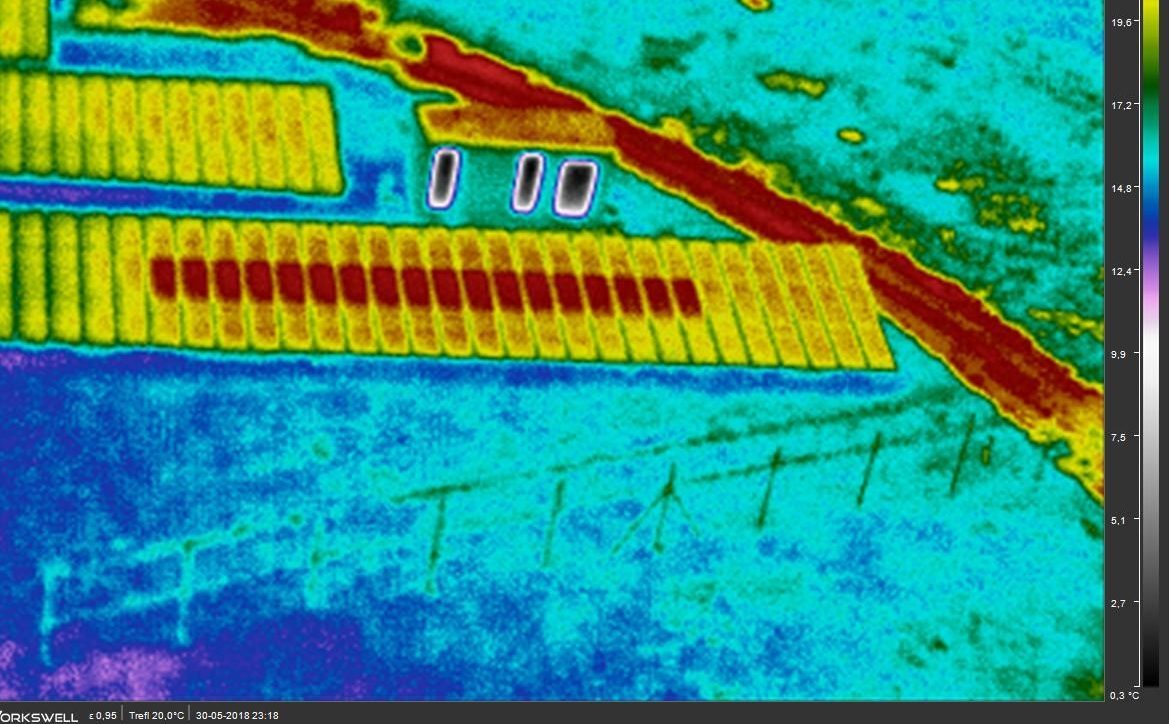

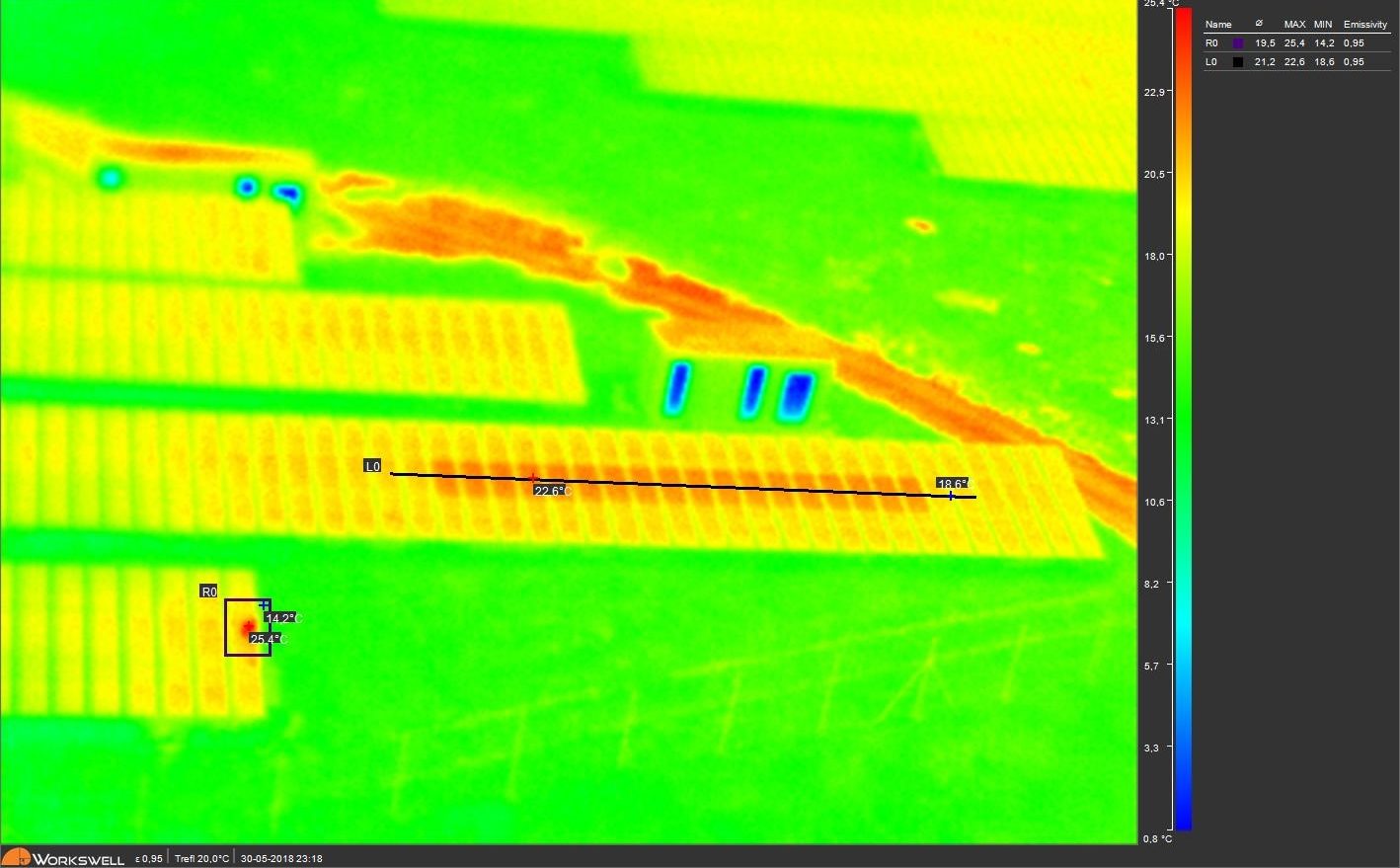

Sample Output
Additional Information
| Thermal Imaging Camera | |
| Resolution | 384 x 288 pixels |
| Temperature ranges | -10 °C to +250 °C |
| Temperature sensitivity | 0.05 °C (50 mK) |
| Accuracy | ±3 % or ±3 °C |
| Spectral range | 8 – 14 μm, Uncooled VOx microbolometer |
| Calibration | Yes, the package includes the calibration certificate |
| Lens | Field of view 35° (13 mm) |
| Focus | Manual (focused on infinity, Min focus distance depends on lens) |
| Digital zoom in IR | 12x |
| Digital Camera | |
| Resolution | 1600 x 1200 pixels |
| Focus and zoom | Fixed, 16x digital |
| Remote control & Video output | |
| Digital interfaces | PWM, S.BUS, USB 2.0 (data transfer, WIRIS Mini update and control) |
| Video output | Digital HDMI (1280 x 1024px), Analogue Video (NTSC, PAL) |
| Memory and data recording | |
| Image recording | Radiometric JPEG, Radiometric TIFF, Non-Radiometric, Digital camera JPEG |
| Video recording | No |
| GPS tagging | Yes, MavLink or GPS serial communication |
| Software | Internal / Micro SD card slot |
| Measurement functions | |
| Measurement functions | Max temperature, Min temperature |
| Emissivity correction | Yes |
| Power supply & dimensions | |
| Input supply voltage | 7 – 32 V DC (< 6W power dissipation) |
| Dimensions and weight | 86 x 68 x 47 mm, 160g |
