Workswell WIRIS Security

WIRIS Security

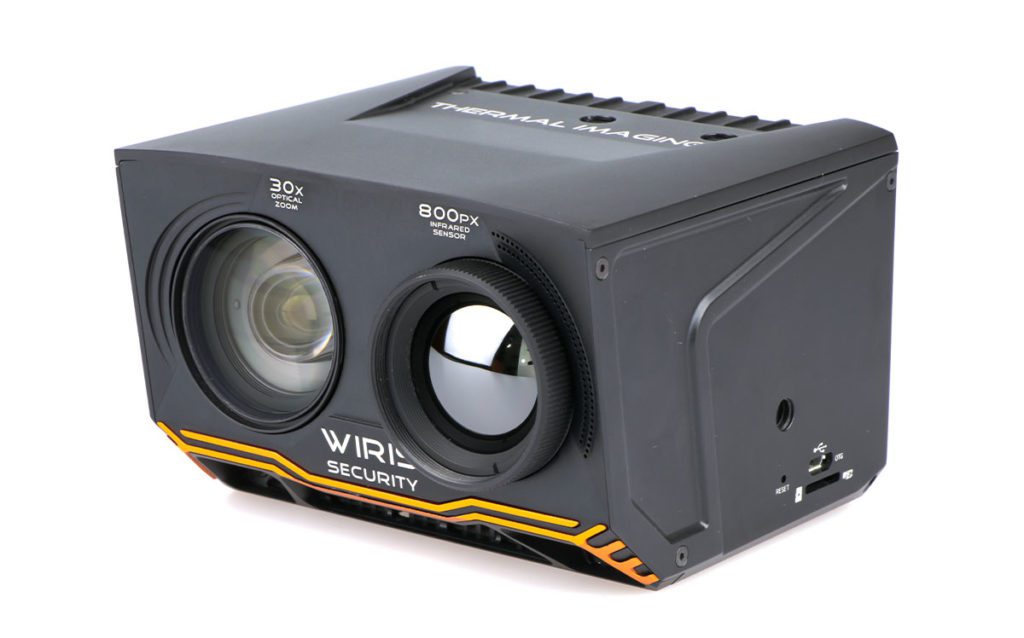

The Workswell WIRIS Security is an LWIR (7.5 – 13.5 μm) thermal camera for drones designed specifically for search & rescue operations. This instrument offers a high-resolution thermal camera (800×600 px), 30x optical zoom in the RGB spectrum, search & rescue functionalities, and excellent temperature sensitivity. What’s more, the WIRIS® Security is encased in a rugged construction made of lightweight aluminum. Recommended applications include building and perimeter surveillance, searching for missing persons, firefighting operations, and a wide range of other critical operations.

Workswell WIRIS Security

Camera delivers both thermal and visual image

The WIRIS Security thermal camera is designed for most challenging search and rescue appliacations.

Workswell WIRIS Security
Workswell WIRIS Security

Live, high-resolution and high-image-frequency visuals delivered straight to the screen

Workswell WIRIS Security

High Resolution & Thermal Sensitivity

The WIRIS Security thermal camera offers an unrivaled resolution of 800×600 px – and its thermal sensitivity clocks in at 40 mK! No other drone-mounted thermal imaging camera can offer these parameters.

Precise Night Vision RGB Camera



The Workswell WIRIS Security camera comes equipped with an incorporated specialized visual band imagery RGB camera with high-sensitivity dusk and night vision and 10x optical ZOOM. Thus, the RGB camera image is clear even at minimum light of 0.0008 lux. The camera’s focal length is variable within an interval of 129.0 mm – 4.3 mm, and it equals up to 30x optical ZOOM.

Resolution Matters.

The WIRIS Security offers the highest resolution on the market for both the RGB sensor and the thermal imaging sensor. In search and rescue operations, resolution is not just a technical parameter. In practice, it may well be the difference between life and death. We stay on the cutting edge of camera quality because resolution matters.

Many Interfaces



The Workswell WIRIS Security offers an interface enabling the widest range of connections to the drone, the control unit, an external GPS sensor, and other instruments. Wi-Fi low latency live video streaming and a command link are also available. The following HW interfaces are available: S.Bus, CAN bus (DJI M600 and A3 controller compatible), Ethernet (RJ 45), MavLink, External GPS connection, and External trigger.

Workswell WIRIS Security
Workswell WIRIS Security

NON ITAR



This camera is categorized as a NON-ITAR product, which means that from the administrative point of view, the sale, export, and import of this thermal camera is considerably easier and faster than it would be for an ITAR unit. There are no extensive legal requirements to comply with for the WIRIS Security.

Video Streaming and WiFi Commands



RTSP video streaming, image, and command transfer through Wi-Fi are among the other WIRIS OS functionalities. This feature is provided by the RJ 45 Ethernet port.

See more information in the Stream SDK tutorial

Workswell WIRIS Security
Workswell WIRIS Security

WIRIS OS – Capture the Full Potential



The WIRIS OS operating system has been in development for over 4 years now, and it’s been tested on each of the previous generations of Workswell’s WIRIS cameras. This platform allows you to maximize the full potential of the camera’s sensor and computing hardware – it delivers results that similar products without an operating system cannot even touch.

Impressive Storage



The Workswell WIRIS Security camera is equipped with an SSD disc with 512 GB or 256 GB memory for recording. It also enables data storage via an external USB disk or microSD card.

Workswell WIRIS Security - SSD Disk
Workswell WIRIS Security

SDK – Develop your own Apps



Along with the Workswell WIRIS Security, we provide an SDK (Standard Development Kit) enabling you to develop your own applications. These libraries give access to low-level functionalities and enable the application developer to fully utilize the camera hardware’s potential.

Picture-in-Picture



The innovative picture-in-picture feature allows you to merge a thermal image with an RGB camera image in real time, even with 30x optical ZOOM

Workswell WIRIS Security

Trust in Experience



Five years ago, Workswell launched the first thermal camera for use with drones – the Workswell Thermal Vision Pro. Since then, we’ve delivered numerous changes, revolutionary innovations, and creative variations on what has become the Workswell WIRIS platform. Now, we’re offering our most advanced model ever. This generation of the WIRIS Security incorporates all of our experience – everything we’ve learned from our successes, and our failures. In all we do, we do the best we can.

Weight and Dimensions



Workswell’s WIRIS weighs less than 780 g, which is very convenient for drone use.


WEIGHT: < 780 g
DIMENSIONS : 111 x 80 x 103 mm

Workswell WIRIS Security

Videos

Gallery

From our customers on Twitter

related applications

Resolution comparison

Comparison between 640px and 800px camera

Other information

WIRIS Security Key feature specification
High sensitivity Night vision modes in visual Full HD cameraAdvanced Noise Reduction Technology
  • filters noise from the image for clearer results in low-light conditions
  • the de-fog feature allows clearer viewing in foggy or misty scenes
  • when the feature is activated, the camera detects the haze level and automatically applies the required effects.
Auto IR-cut Filter Function
  • in low-light conditions, the camera automatically switches from Day to Night vision mode
  • the IR-cut filter function allows to boost sensitivity for clear pictures in darkness.
Wide-D Image Processing Technology
  • gives the ability to see clear, detailed images in high-contrast or backlit environments
Operating onboard systemWIRIS OS for full real-time data streaming and control during the flight
  • operating system ensures the full access to all camera functions
  • easy camera control via S.Bus, CAN bus, MavLink, RJ-45 or Trigger
30x Optical Antivibration zoomFull HD 30x optical zoom camera with anti-vibration compensation
Thermal camera specification
IR camera resolution800 x 600 pixels
Scene range-20 °C to +150 °C
Temperature sensitivityExtra sensitivity of 0.04 °C (40 mK)
Frame rate25 Hz or 9 Hz
Spectral range / detector7.5 – 13.5 μm / Uncooled VOx microbolometer
Available lenses35 mm (21.2° x 16.2°), visit FOV calculator
Digital zoom1 – 12x continuous
Digital visual camera
Resolution1 920 x 1 080 pixels (Full HD), 1/2.8” EXMOR R CMOS sensor
Optical zoom30x optical zoom with vibration compensation and image stabilization
Minimum illumination0.0008 lux (ICR on, Slow shutter 1/4s, High sensitivity on)
View angle / Focal lengthUltra zoom 2.3° – extra wide 63.7° / 129.0 mm – 4.3 mm
Focus and exposure timeAutofocus with automatic or manual exposure time control
Image enhancementAuto-white balance, WDR, IR cut filtering, DEFOG, 3D Noise reduction
Memory and data recording
MemoryInternal high-speed SSD 256 GB or 512 GB for image and video recording
External slot for Micro SD card & USB 2.0 for USB stick for taking images
Image and video formats
Image and video formatsDigital camera Full HD JPEG images
Digital camera h.264 encode video HD recording
Infrared camera h.264 encode video Full frame 25 Hz recording
GPS geo-tagging (image & video)
GPS tagging (image & video)MavLink or External GPS or DJI A3 controllers compatible via CAN bus
Interfaces & real-time remote control
10-pin digital portS.Bus
CAN bus (compatible with DJI M600 and A3 controllers)
MavLink
External GPS connectivity
External trigger
Ethernet (RJ-45) portSDK & RTSP video streaming and camera control
Micro USB 2.0 portUSB 2.0 Mass storage
Camera control and video streaming (optional on request only)
Remote control systemWIRIS OS ensures real-time control of all camera functions during the flight
Remote control optionsS.Bus protocol
CAN bus for real-time control on DJI M600 and GPS geo-tagging
RJ-45 for wireless uplink installation (video streaming and camera control)
Micro HDMI video output1 280 x 720 pixels (720p), Aspect ratio 16:9, Micro HDMI video output.
Camera functionsPallets: 19 changeable pallets for different flying conditions
Multi-camera modes: Full screen mode, IR only, VIS only, Picture in Picture
Periodic capturing: From 1s, IR and VIS images simultaneously
DDE function: Digital Detail Enhancement for high dynamic range imagery
NUC control settings: Automatic or manual
Power supply, weight & dimensions
Input supply voltage9 – 36 VDC, Coaxial 2.1 x 5.5 mm, outer shell – GND
Power dissipation (avg.)19 W
Weight< 780 grams
Dimensions (L x W x H)111 mm x 80 mm x 103 mm
Mounting3 x 1/4-20 UNC threads around the camera
Housing materialDurable aluminium body with ABS parts
Environmental
Operating temperature range-20 °C to +55 °C
Storage temperature range-30 °C to +60 °C

WIRIS Security documents

Format Name Size Link
PDF Datasheet 1.0 MB Download
