WIRIS 2nd gen

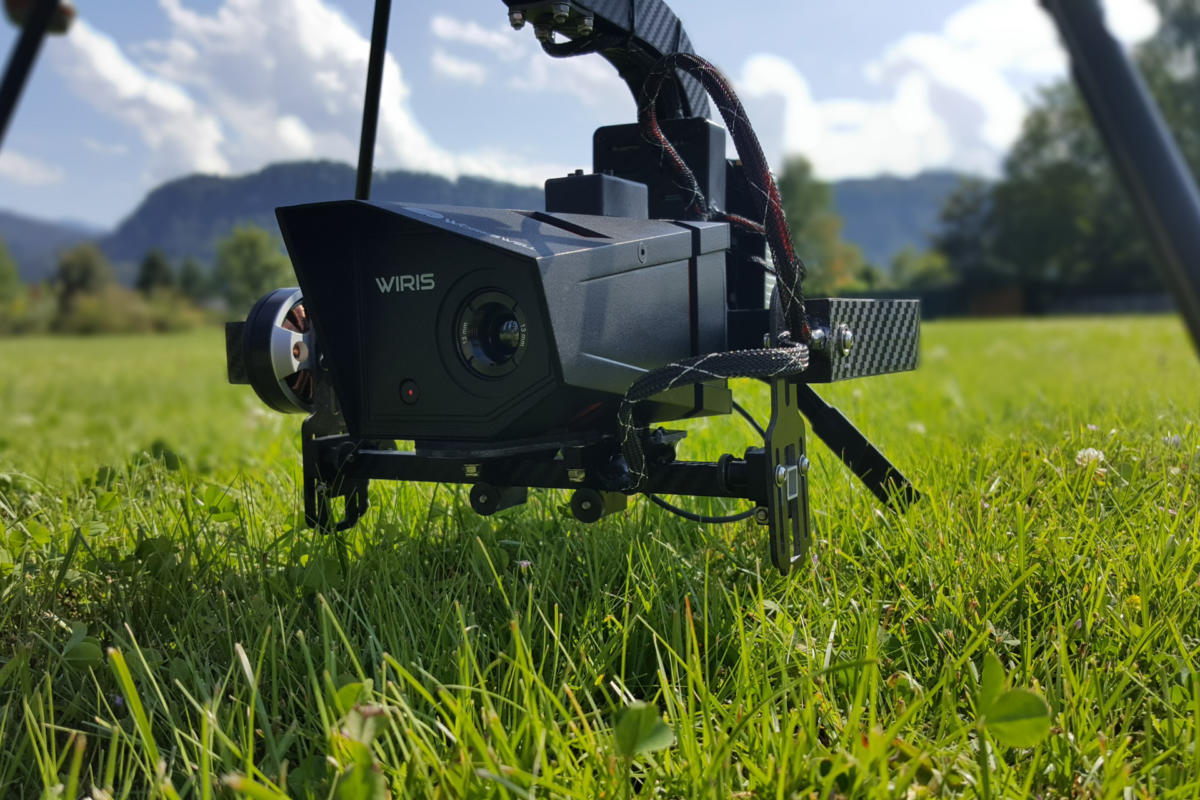

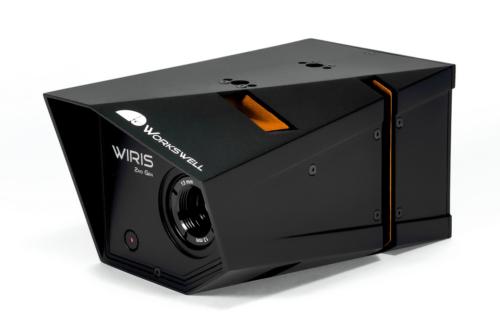

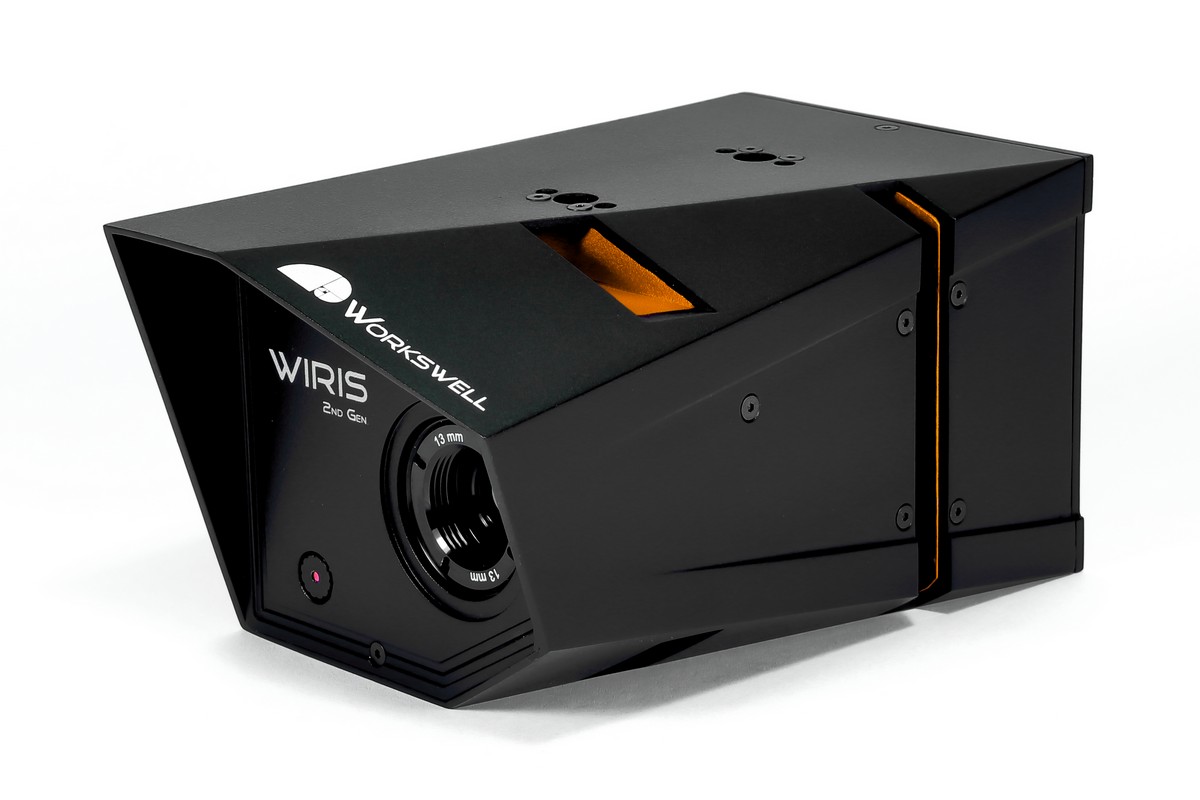

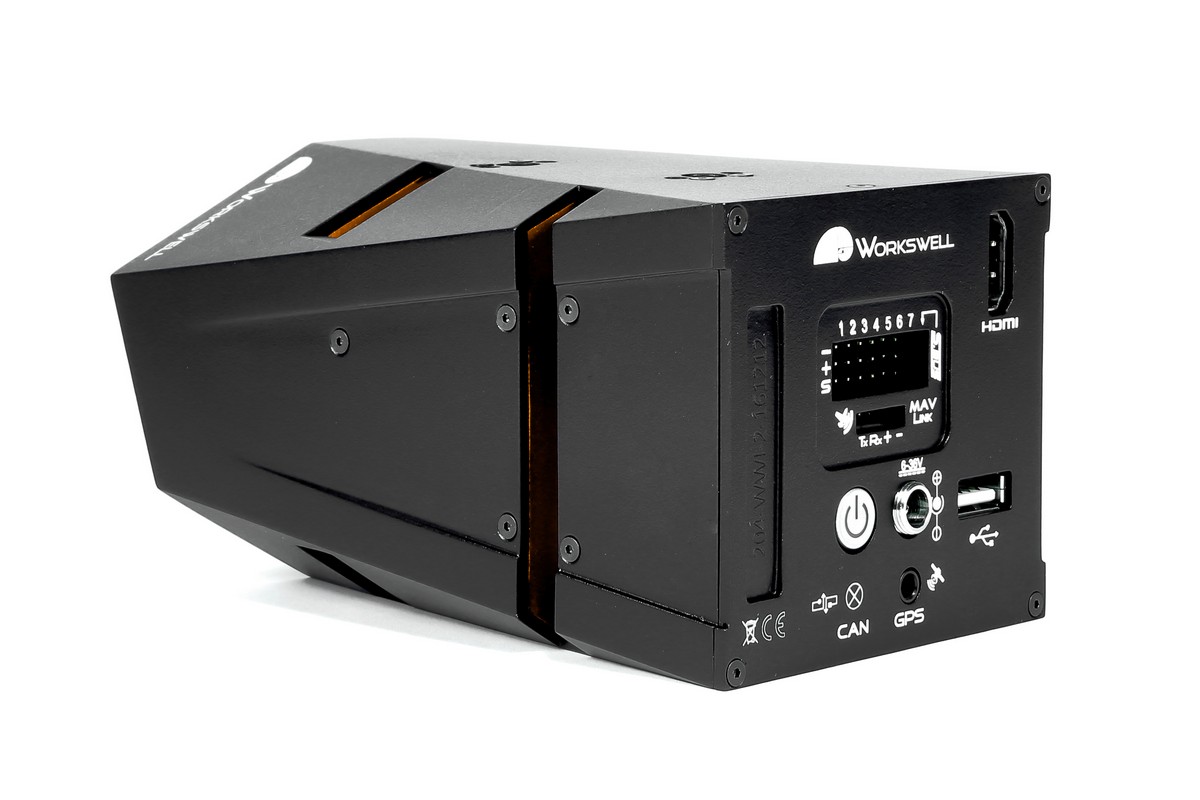

Workswell’s WIRIS thermal imaging system for unmanned aerial vehicles (UAV Drones) is a compact system that combines a thermal camera, a digital camera and a control unit in one very compact case. Workswell’s WIRIS camera enriches your drone by giving it many new uses and features. For many companies, this reason is why they should acquire a drone with a WIRIS 2nd gen thermocamera. That is why we also offer you complete sets, including a ready to fly drone and a Workswell WIRIS thermocamera!
Great sensitivity
Workswell WIRIS can offer you brilliant temperature sensitivity up to 0.05°C (50mK) and 0.03°C (30mK) on request.High accuracy
The WIRIS thermal cameras great accuracy allows you to take precise temperature measurements from afar.
Many interfaces

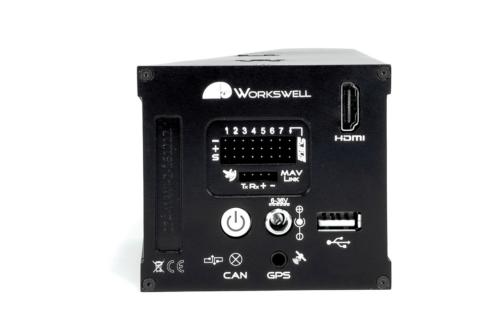

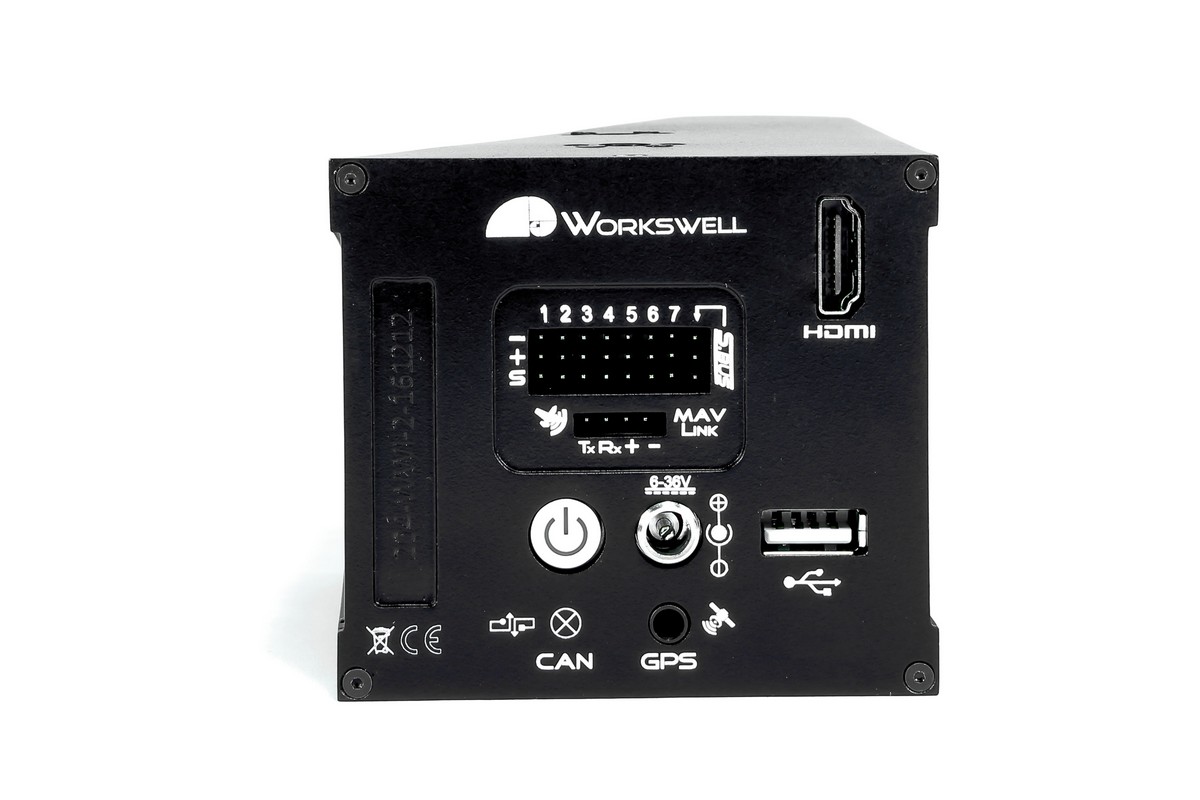

There are 7 digital PWM inputs available, the eighth is being used for the S.BUS. The WIRIS thermal camera also has a CAN bus that is fully compatible with DJI drone’s CAN protocol. You can use Mavlink too, which is compatible with Pixhawk’s GPS image geotagging. To output video files there is standard HDMI port on the camera.Workswell coreplayer
Designed to perform detailed analysis and allow a user to edit, export data to different formats, and create comprehensive reports from thermograms.
Workswell thermoformat
Designed mainly for batch administration of recorded thermograms. If you need to change the color palette, emissivity, or temperature scale in all the recorded thermograms then the ThermoFormat will saves you a lot of time as it can perform all of these functions.

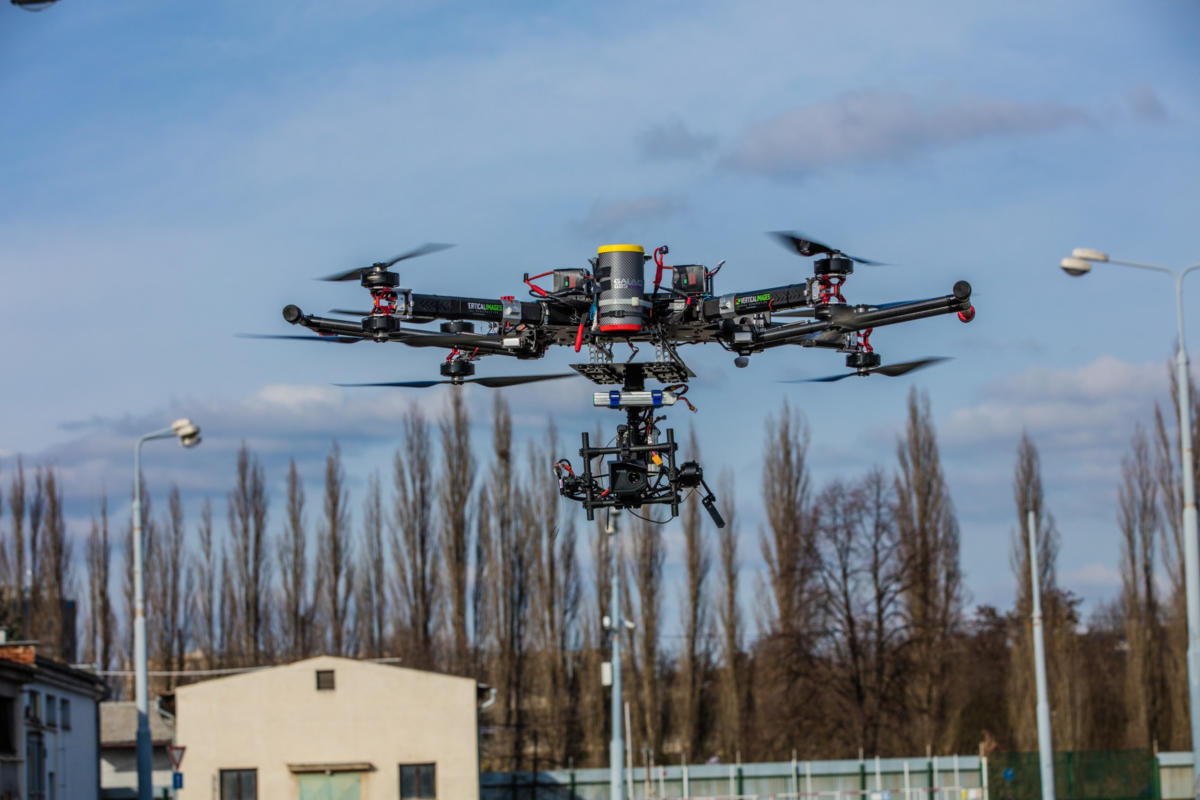

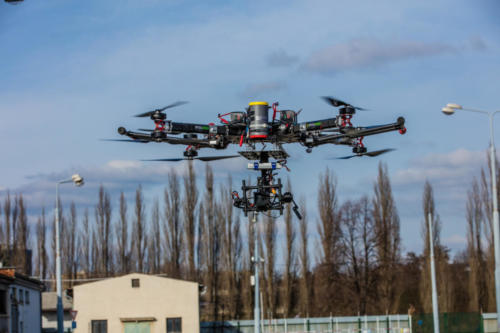

Full compatibility with DJI M600 PRO and DJI RONIN MX

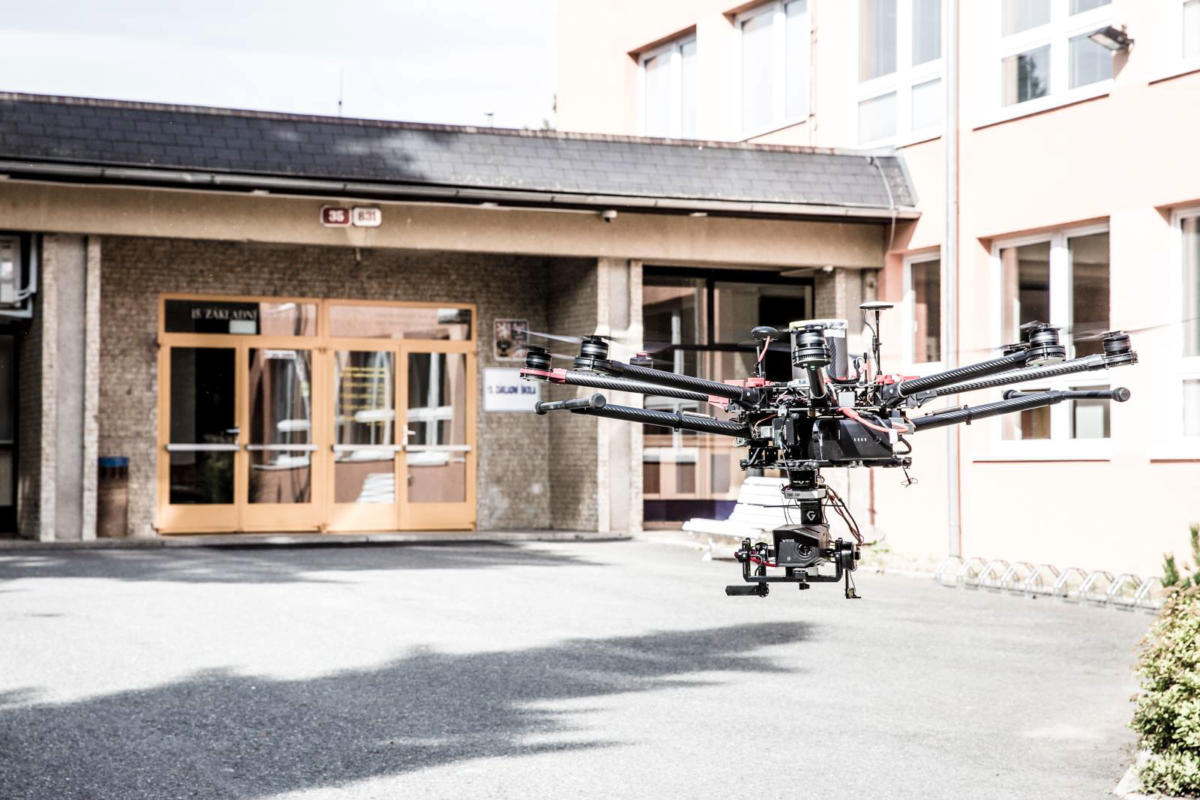

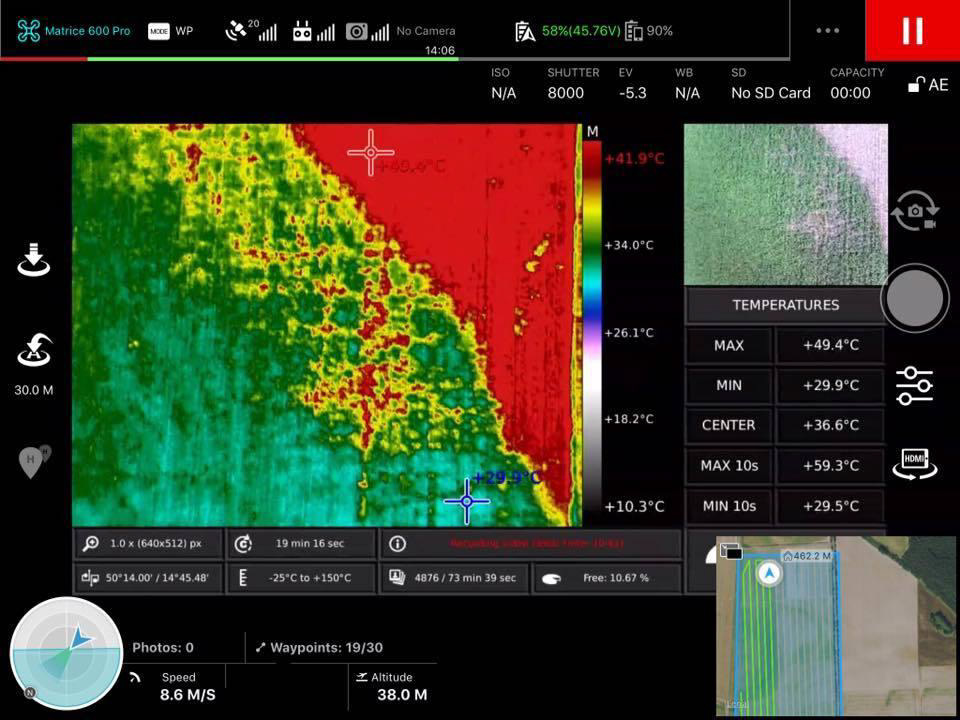

The ready to fly combo of a DJI M600 Pro drone and a WIRIS thermal imaging is the ideal choice for you! You can control both your DJI M600 Pro and Worskwell’s WIRIS thermal camera using one standard RC controller. It cannot be easier!

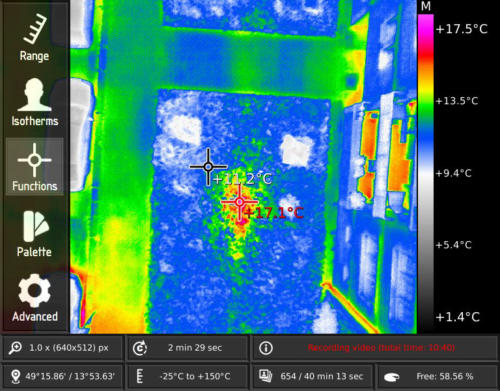

Radiometric video and TIFF export
The WIRIS system produces radiometric data. Radiometric images as well as fully radiometric videos can be stored directly on the camera. In addition, Worskwell’s WIRIS 2nd gen uses the new TIFF radiometric image format.FFC Calibration
Each Workswell WIRIS thermal imaging system is shipped fully calibrated and comes with a calibration certificate. However, if the camera changes temperature periodically during operation FFC is applied.

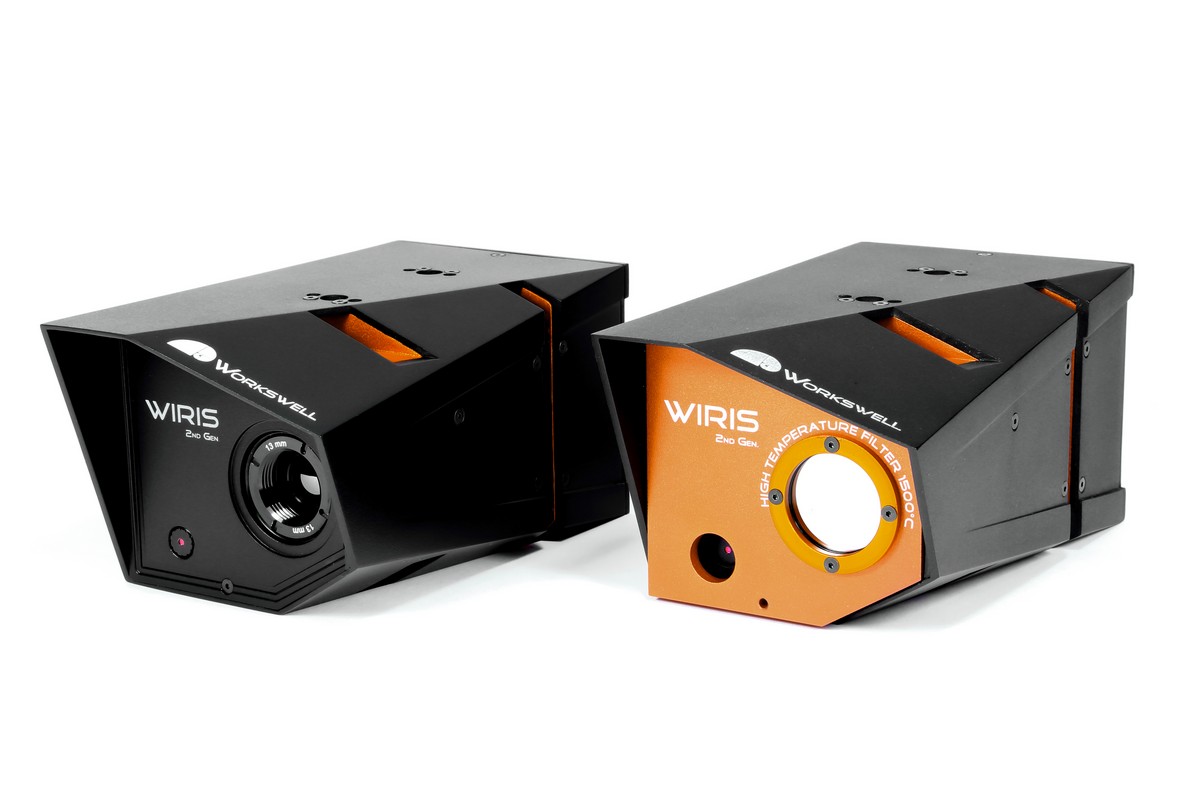

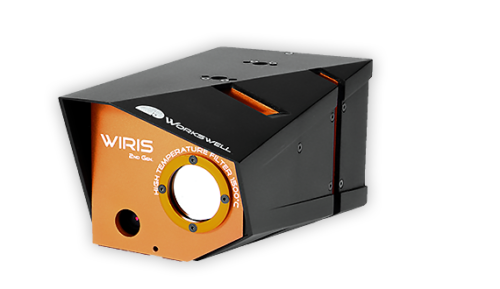

Temperature range up to 1500°C

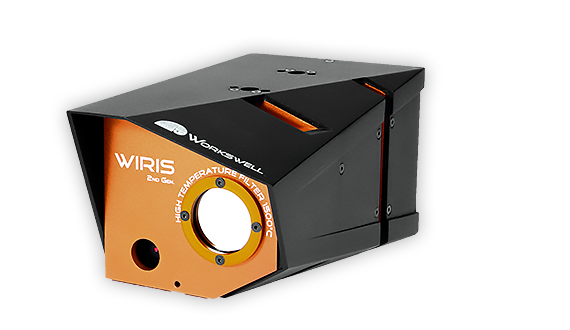

The WIRIS thermal camera has an amazing temperature range extending up to 1500°C when using a high temperature filter.Weight and Dimensions
Workswell’s WIRIS weighs less than 390 g, which very convenient for drone usage.
WEIGHT: < 390 g
DIMENSIONS : 135 x 77 x 69 mm
Mapping bundle
Accessories
Gremsy T1
Gimbal Gremsy T1 for perfect stabilisation and smooth camera motion.
CAN bus
CAN bus for communication with DJI A2, A3 flight controllers and GPS
High temperature filter
High temperature filter which extends temperature range up to 1500°C.
Videos

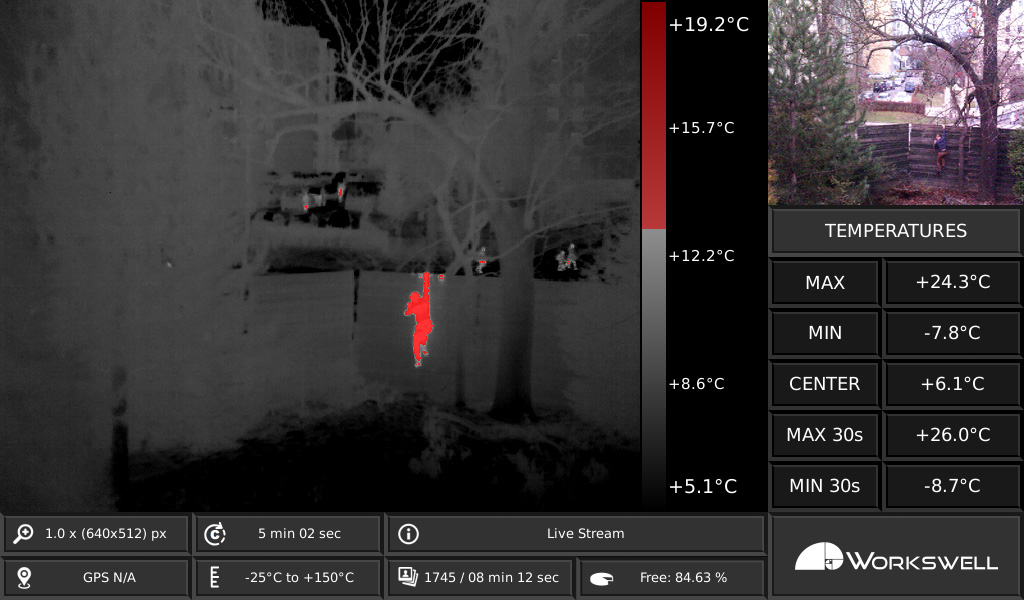

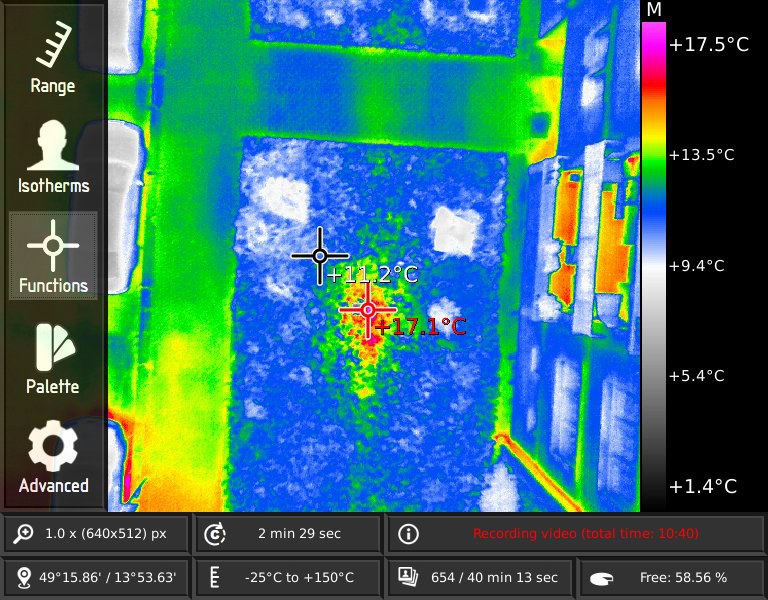

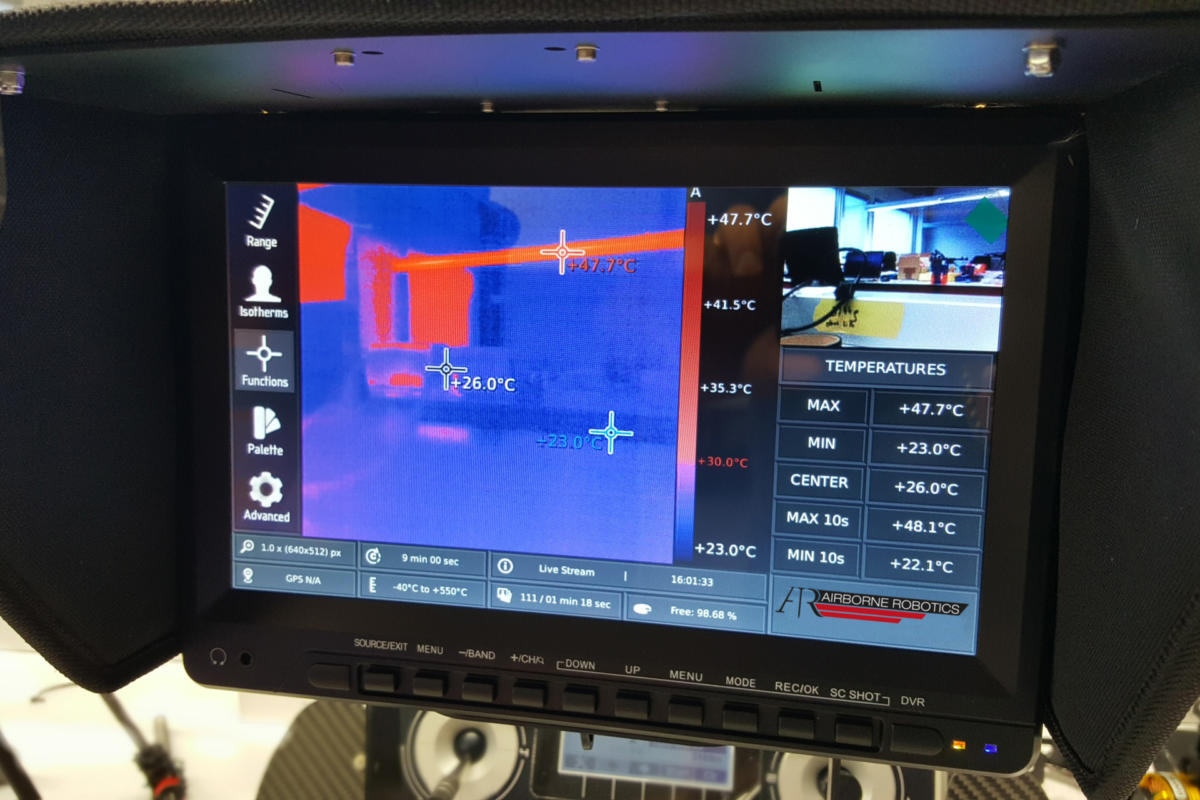

Gallery
Other information
| Camera basic information | ||
| Camera | Workswell WIRIS 640 | Workswell WIRIS 336 |
| Resolution | 640 x 512 pixels | 336 x 256 pixels |
| FPA active sensor size | 1.088 x 0.8705 cm | 0.5712 x 0.4351 cm |
| Temperature ranges | -25°C to +150°C -40°C to +550°C (optional +1 500°C on request) 50°C – 1000°C with external filter | -25°C to +150°C -40°C to +550°C (optional +1 500°C on request) 50°C – 1000°C with external filter |
| Temperature sensitivity | 0.05°C (50mK)0.03°C (30mK) available on request | 0.05°C (50mK)0.03°C (30mK) available on request |
| Accuracy | ± 2% or ± 2°C (In high temperature range 0°C to +550°C) | ± 2% or ± 2°C (In high temperature range 0°C to +550°C) |
| Spectral Range | 7.5 – 13.5 μm | 7.5 – 13.5 μm |
| Calibration | Yes | Yes |
| Detector type | Uncooled VOx microbolometer | Uncooled VOx microbolometer |
| Digital zoom | 1 – 14x continuous | 1 – 11x continuous |
| Resolution | 1 600 x 1 200 pixels | 1 600 x 1 200 pixels |
| Input Supply Voltage | 6 to 36 V DC | 6 to 36 V DC |
| Dimensions | 135 x 77 x 69 mm | 135 x 77 x 69 mm |
| Weight | < 390 g | < 390 g |
| Mounting | 4x 1/4-20 UNC thread (2x bottom side and 2x top side) | 4x 1/4-20 UNC thread (2x bottom side and 2x top side) |
| Resolution 640 x 512 pixels | |||
| Parameter | Field of view | Spatial resolution | Pixel size |
| Focal length 9 mm | FOV 69° x 56° | 1.889 mrad from 1 meter | 1.9 cm from 10 meters |
| Focal length 13 mm | FOV 45° x 37° | 1.308 mrad from 1 meter | 1.3 cm from 10 meters |
| Focal length 19 mm | FOV 32° x 26° | 0.895 mrad from 1 meter | 0.9 cm from 10 meters |
| Focal length 35 mm | FOV 18° x 14° | 0.486 mrad from 1 meter | 0.5 cm from 10 meters |
| Resolution 336 x 256 pixels | |||
| Parameter | Field of view | Spatial resolution | Pixel size |
| Focal length 6.8 mm | FOV 45° x 35° | 2.5 mrad from 1 meter | 2.5 cm from 10 meters |
| Focal length 9 mm | FOV 35° x 27° | 1.889 mrad from 1 meter | 1.9 cm from 10 meters |
| Focal length 13 mm | FOV 25° x 19° | 1.308 mrad from 1 meter | 1.3 cm from 10 meters |
| Focal length 19 mm | FOV 17° x 13° | 0.895 mrad from 1 meter | 0.9 cm from 10 meters |
Wiris 2nd gen applications |

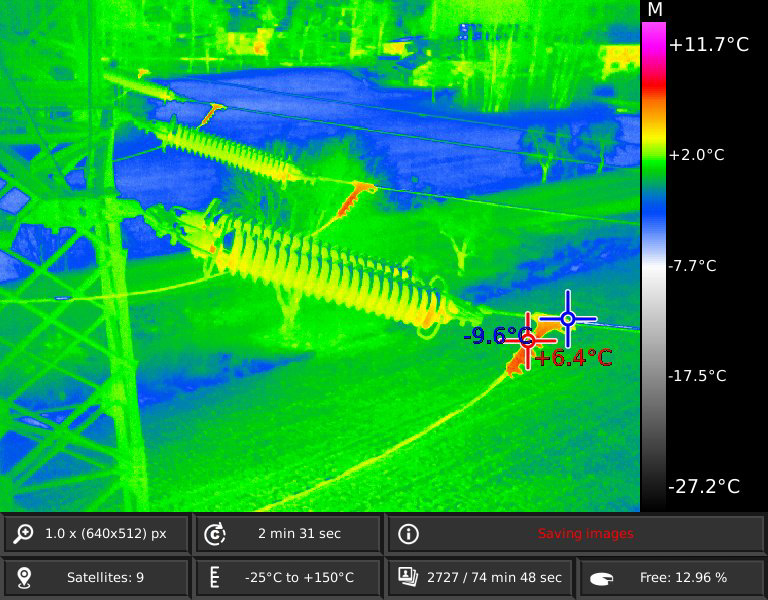

|||
| Format | Name | Size | Link |
| Diagnosis of high voltage cables | 0.8 MB | Download | |

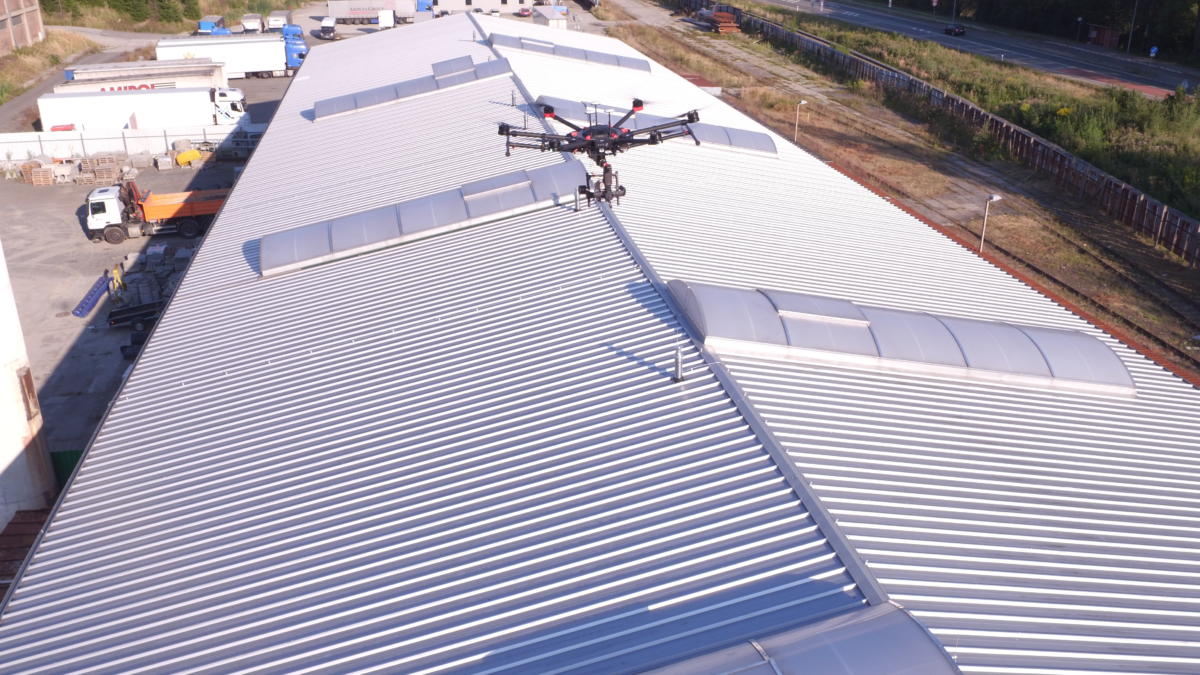

| Diagnostics of leaking into flat roofs | 1.0 MB | Download | |

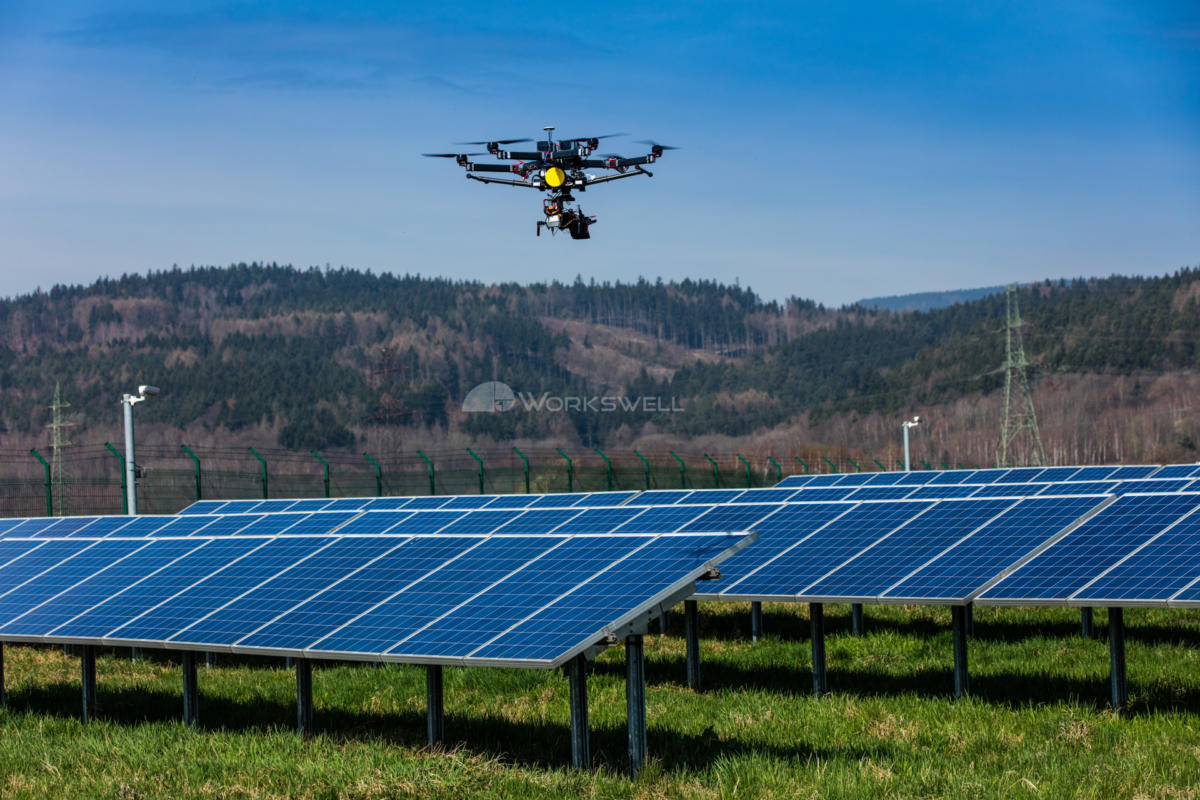

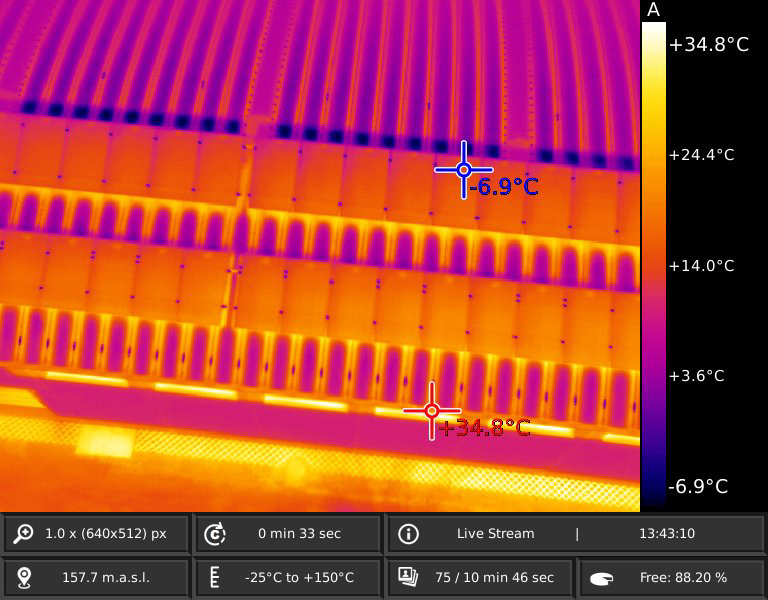

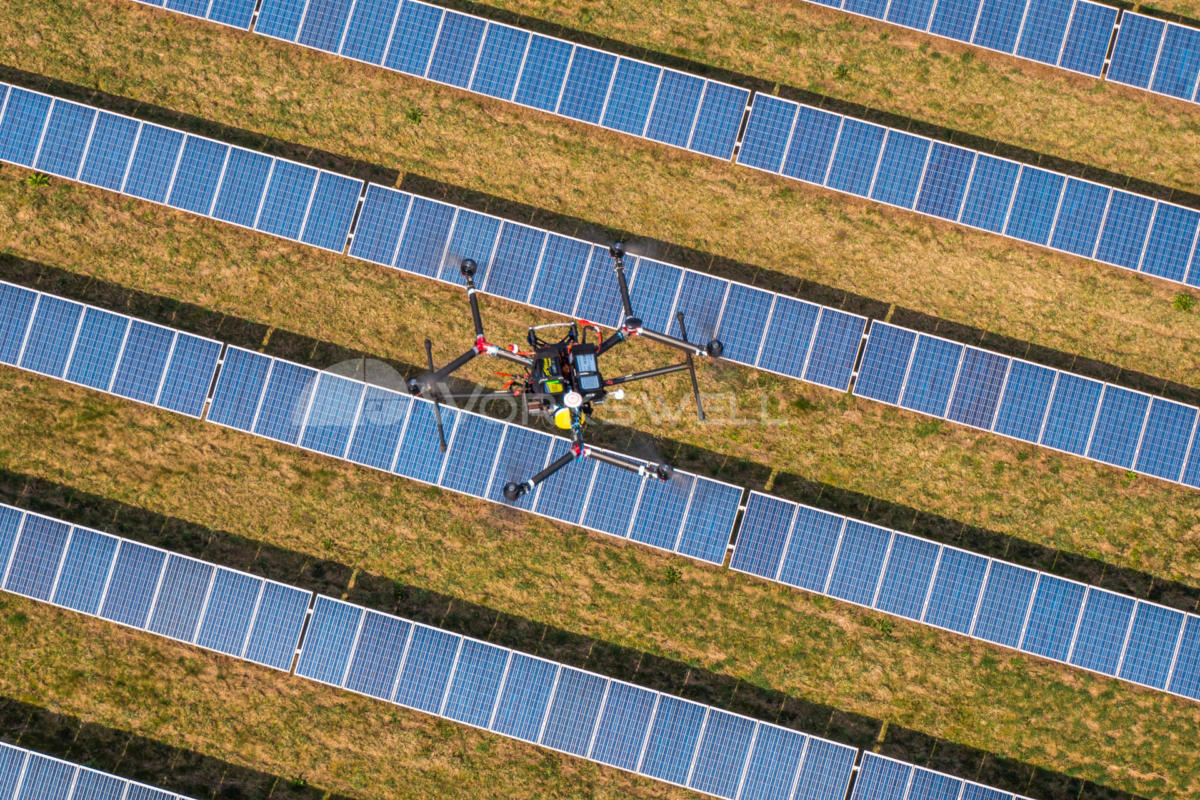

| Diagnostics of photovolaic power plants | 1.0 MB | Download | |
| Security | 0.8 MB | Download | |
| Pipeline inspection | 0.8 MB | Download | |
| Thermographic diagnostics of buildings | 0.8 MB | Download | |
Wiris 2nd gen other documents |
|||
| Format | Name | Size | Link |
| Datasheet | 1.0 MB | Download | |
| Drawings | 10.4 MB | Download | |
| ZIP | 3D Model | 1.0 MB | Download |
| ZIP | Ethernet plugin linux library (v1.1) | 0.6 MB | Download |
